Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

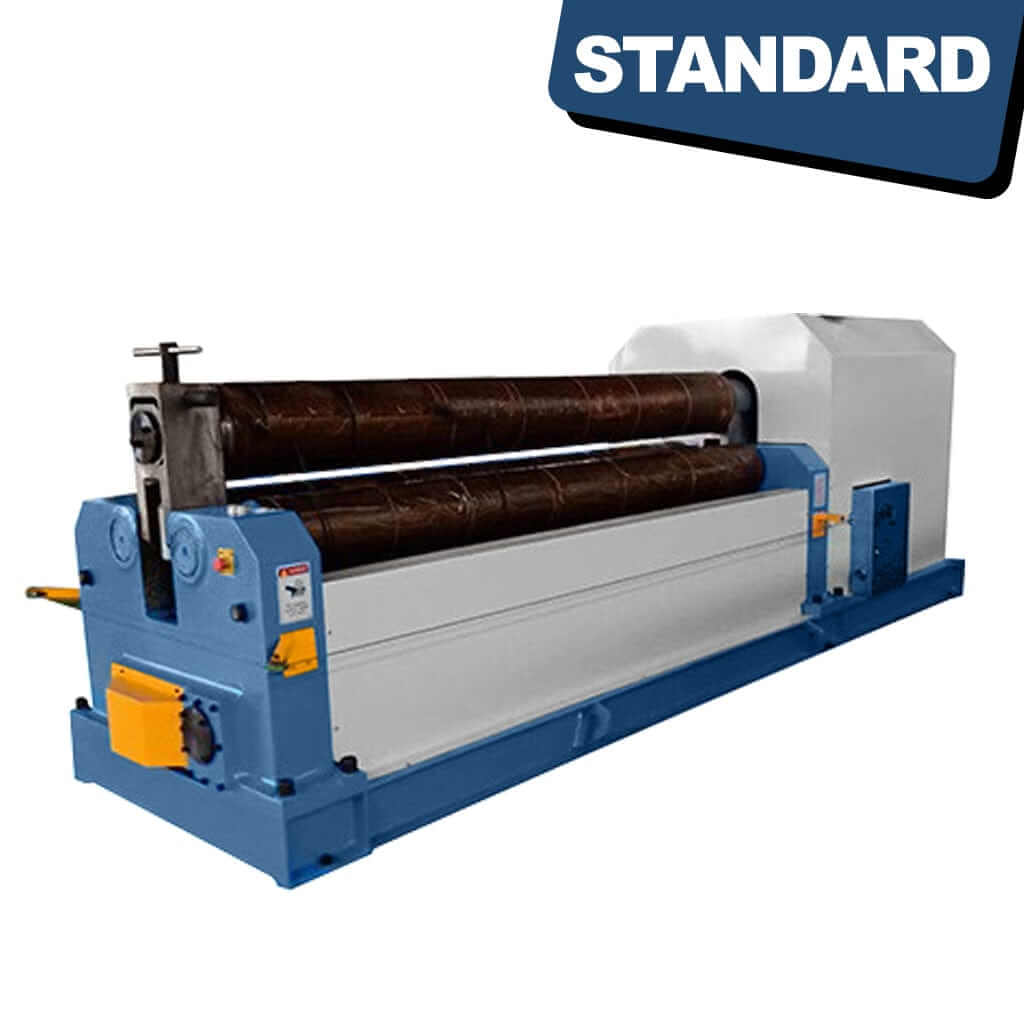

Standard PRM3-12x3100 3-Roll Mechanical Pyramid Type Plate roller:
A Motorized 3-Roll Plate roller with Section Roller is a machine tool that is used to shape and form metal plates or sheets. It consists of three rollers that are powered by a motor. The two outer rollers are used to clamp the metal plate in place, while the middle roller is used to apply pressure and shape the metal. The section roller is a smaller roller that can be adjusted to apply pressure to specific areas of the plate, allowing for more precise shaping. The machine is typically used in metalworking and manufacturing industries to create parts and components for various products.
Delivery is 8-12 Weeks from Deposit
To use a Motorized 3-Roll Plate roller with Section Roller, follow these steps:
Start by preparing the metal plate by cleaning it of any debris or contaminants.
Position the plate between the two outer rollers and adjust the clamping pressure to hold the plate securely in place.
Adjust the middle roller to the desired position and set the pressure to be applied.
Turn on the motor to start the rollers rotating.
Slowly feed the plate through the rollers, making sure to keep the plate centered between the outer rollers.
Use the section roller to apply pressure to specific areas of the plate, as desired.
Continue feeding the plate through the rollers until the desired shape and thickness are achieved.
Inspect the plate and make any final adjustments as necessary.
Turn off the motor and release the clamping pressure on the plate.
It's important to follow the safety measures as well such as wearing protective gear, use the machine as per the manual instructions, and making sure that the machine is properly maintained.
