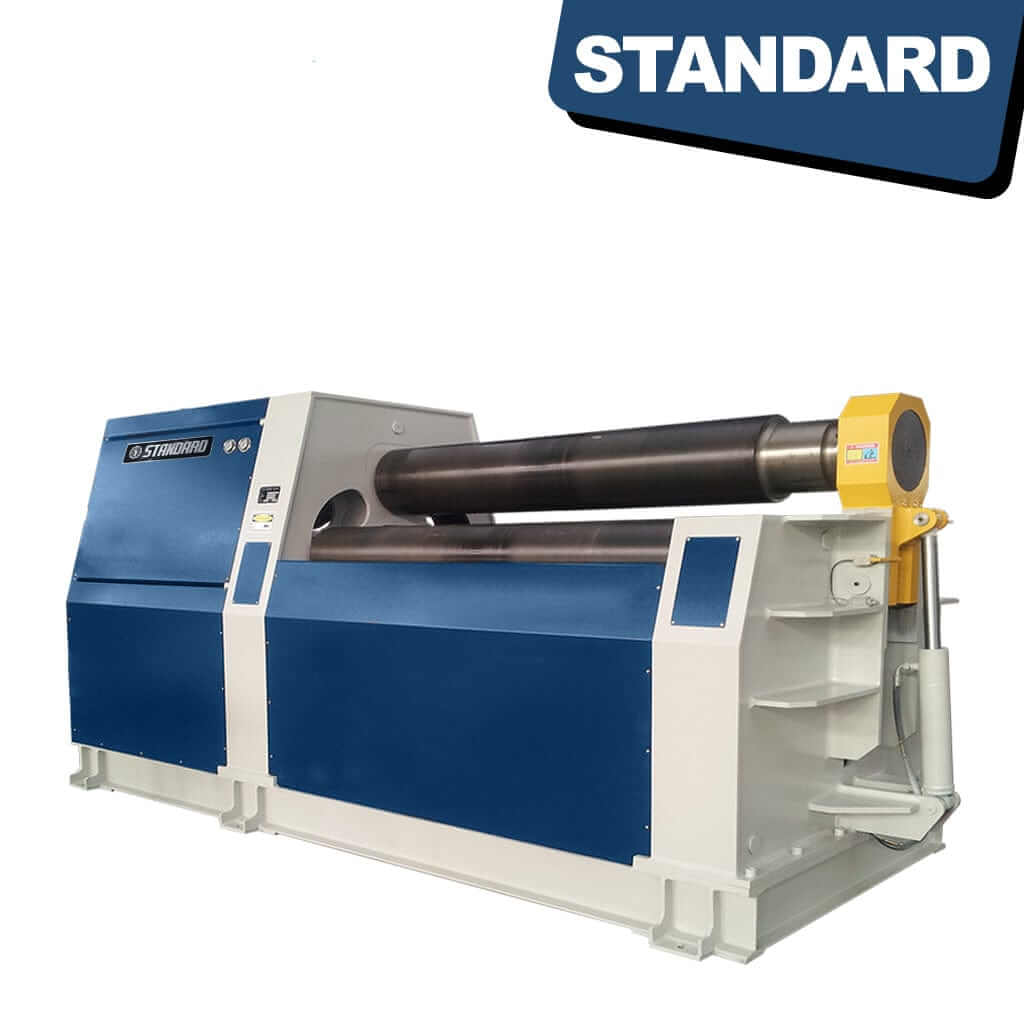

STANDARD PRH4-6x2500 Hydraulic 4-Roll Plate roller with Pre-Bend

Machines are built on order, delivery is 9~14 weeks
Shipped Worldwide- Prices include freight to your nearest sea port*

*Excludes Local Taxes, TC Apply on Delivery*

Description

Introducing the STANDARD Hydraulic 4-Roll Plate Roller - Your Ultimate Industrial Companion!

Hey there, fellow industry enthusiast! If you're in the market for a rock-solid Hydraulic 4-Roll Plate Roller, you've just hit the jackpot. Our STANDARD brand has been a trusted name in industrial equipment for four decades, and we've poured all that experience into creating the perfect machine for you.

Unleash the Power of Precision: Why settle for anything less than perfection when bending and rolling heavy plates? With our STANDARD Hydraulic 4-Roll Plate Roller, you can achieve precision like never before. Whether you're working in metal fabrication, shipbuilding, or any other industry that demands superior plate rolling, this machine has got your back.

Why Choose STANDARD?

  • Experience Matters: We've been at this game for 40 years, and that kind of expertise doesn't come overnight. Trust in a name that's synonymous with quality.

  • Double Initial Pinch: With our machine's double initial pinch feature, you'll experience exceptional control and accuracy during every roll. It's like having a trusted coworker who never makes mistakes.

  • Pre-Bend Perfection: Achieving that ideal pre-bend has never been easier. Our STANDARD Hydraulic 4-Roll Plate Roller makes it a breeze to get your workpiece ready for the final bend. It's like a warm-up before a marathon - crucial for success!

A Personal Touch: Back in the day, our founder, John, realized that the industry was struggling with plate rollers that just didn't cut it. Frustration brewed, and that's when, he envisioned a roller that would make every operator's life easier. Fast forward 40 years, and here we are, bringing the perfect rollers to your shop floors.

Let's Talk Features

  • Robust Build: Our STANDARD Hydraulic 4-Roll Plate Roller is built like a tank. It can handle heavy-duty, industrial workloads day in and day out.

  • User-Friendly: We believe that technology should make your life easier, not more complicated. That's why our machine is designed with user-friendliness in mind.

  • Versatile Applications: From cylinders to cones and beyond, this roller can handle a wide range of plate rolling tasks. It's the Swiss Army knife of plate rollers.

  • Safety First: We take safety seriously. Our machine is equipped with advanced safety features to protect you and your team.

Time to Roll: So, are you ready to roll with the best in the industry? The STANDARD Hydraulic 4-Roll Plate Roller is your ticket to precision, reliability, and efficiency. Don't miss out on the double initial pinch and pre-bend capabilities that set this machine apart.

When you choose STANDARD, you're not just getting a piece of equipment; you're investing in decades of expertise and a commitment to excellence. Join the STANDARD family today and experience the difference.

Order your STANDARD Hydraulic 4-Roll Plate Roller now and get ready to reshape your industry, one roll at a time!

Main Features:

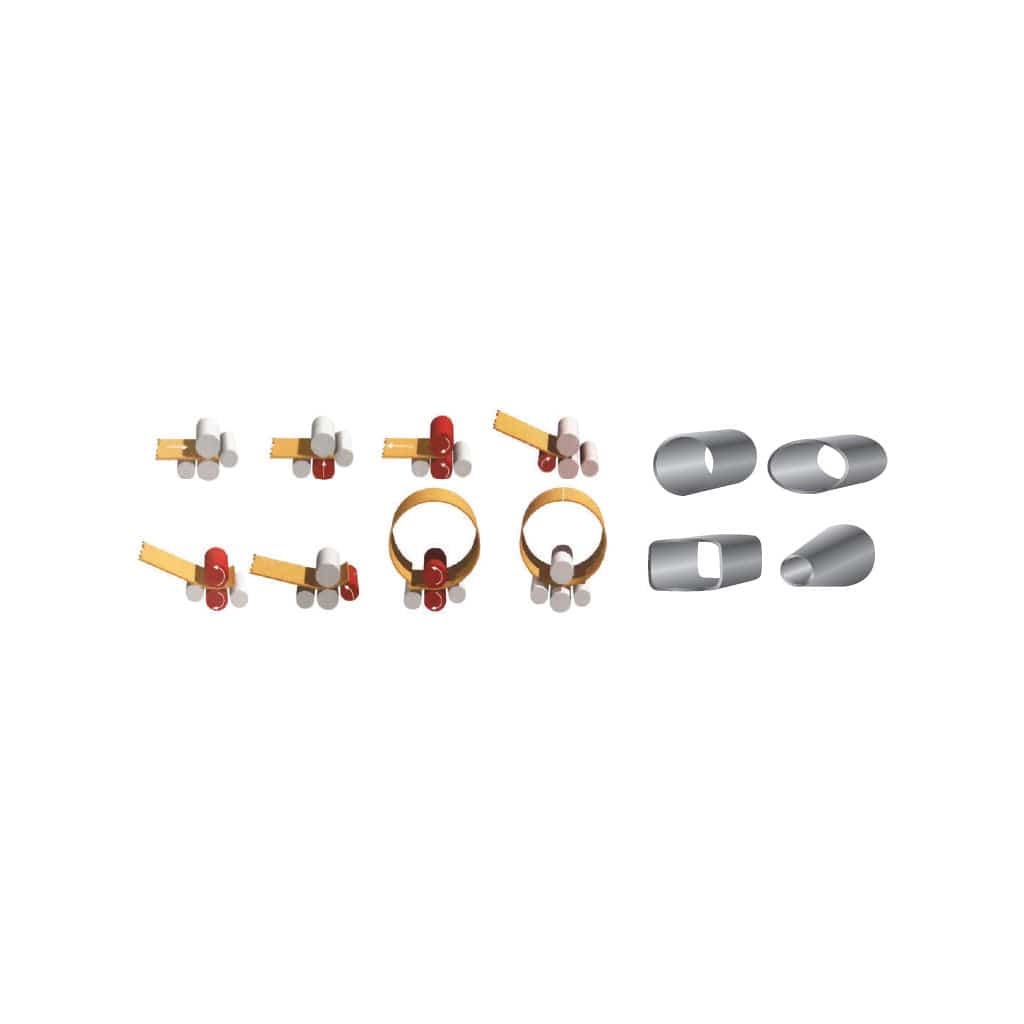

  • This 4-roller type provides bending capabilities to shape the plate into a variety of forms, including a cylinder, arc, or cone.
  • Complete pre-bending as well as rolling in a single work session.
  • The top roller is driven by a hydraulic motor, providing power for the drive roller.
  • The bottom roller is hydraulically operated for clamping the material, while the side roller can function independently.
Specification
  • Max Bending Thickness - 6mm = 0.236 inches
  • Pre-Bending Thickness - 5mm = 0.197 inches
  • Roller Working Length - 2550mm = 100.39 inches
  • Plate Yield Limit - 245Mpa = 35,503.06 psi
  • Top Roller Diameter - 210mm= 8.27 inches
  • Bottom Roller Diameter - 190mm = 7.48 inches
  • Side Roller Diameter - 170mm = 6.69 inches
  • Main Power - 5.5kW = 7.38 horsepower
  • Machine Dimension - 5150x1420x1400mm = 202.76 x 55.91 x 55.12 inches
  • Weight 5800kg = 12,787 lbs
Optional Accessories
  • Siemens K500 NC control system
  • Alien s650 CNC control system
  • Laser sensor
Delivery

This machine is specifically built and the delivery is 9-14 Weeks from Deposit.

How to use a Hydraulic 4-Roll Plateroller with Pre-Bend
  1. Start by preparing the sheet metal that you want to bend. Make sure that it is clean, free of any debris, and properly aligned.

  2. Adjust the top roll to the desired pre-bend angle. This roll will be used to make a small bend in the metal before the main bending operation.

  3. Position the sheet metal between the bottom roll and the top roll, with the pre-bend angle facing up.

  4. Slowly begin to apply pressure to the bottom roll, using the hydraulic motor. As the metal begins to bend, continue to adjust the top roll to achieve the desired angle.

  5. Once the desired bend angle is achieved, stop the machine and remove the sheet metal.

  6. Repeat the process for any additional pieces of metal that need to be bent.

It's important to note that before using the machine, the operator should be trained and familiar with the machine operation and safety measures. Also, the machine should be properly maintained and in good working condition.

*Information shown may differ or change without warning*
