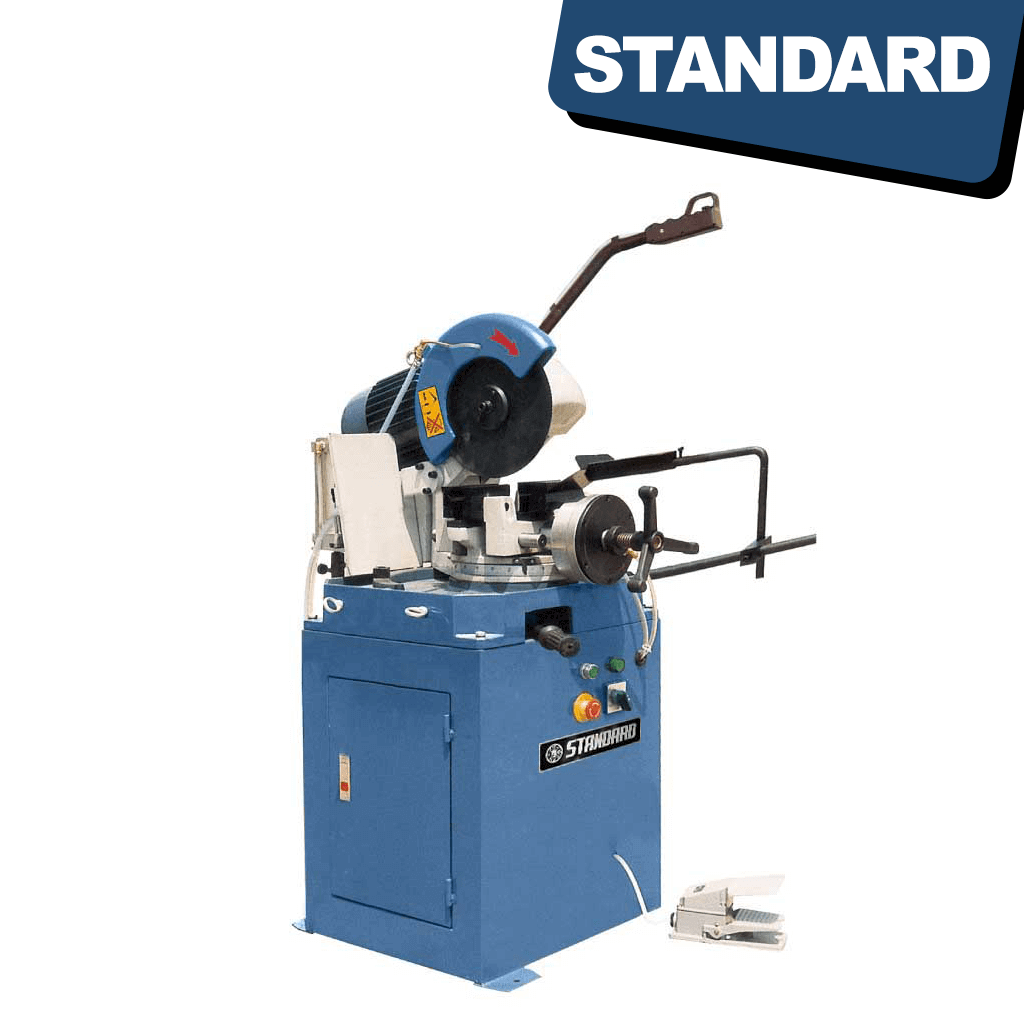

Standard CO-350-P HSS Steel Blade Pneumatic Cut off Saw - 350mm Diameter blade:

A steel blade pneumatic cut off saw with a 350mm diameter blade is a cutting tool that operates using compressed air to power its blade. The blade is made of steel and has a diameter of 350mm, which makes it capable of cutting through a variety of materials, including metal, wood, and plastics. The saw is designed to make clean, precise cuts quickly and efficiently, and is commonly used in industrial settings for cutting large pieces of material into smaller sections. The saw is operated by connecting it to a compressed air source and using a trigger to activate the blade. It is typically equipped with safety features, such as a blade guard and a safety trigger, to protect the user during operation.

Specifications
  • 90° Cutting Capacity
    • Round Bar - Ø50mm = 1.97 inches
    • Round Pipe - Ø110mm = 4.33 inches
    • Square Pipe - 90x90mm = 3.54 x 3.54 inches
    • Rectangular Pipe - 90x70mm = 3.54 x 2.76 inches
  • 45° Cutting Capacity
    • Round Bar - Ø35mm = 1.38 inches
    • Round Pipe - Ø80mm = 3.15 inches
    • Square Pipe - 70x70mm = 2.76 x 2.76 inches
    • Rectangular Pipe - 70x50mm = 2.76 x 1.97 inches
  • Motor - 2.4-3.0kW = 3.22-4.03 horsepower
  • Blade Speed - 50-100rpm
  • Max. Pincer Width - 130mm = 5.12 inches
  • Blade Diameter - Ø350mm =  13.78 inches
  • Weight - 250kg = 551.16 pounds
Delivery

Machines are strictly built on order. (Build-on-Demand)

Delivery 10-14 Weeks from Deposit


How to use a Steel Blade Pneumatic Cut off Saw

Here are the general steps to use a Steel Blade Pneumatic Cut off Saw with a 350mm diameter blade:

  1. Wear personal protective equipment, including eye protection, ear protection, and gloves.
  2. Ensure the saw is properly connected to a compressed air source and that the blade is securely attached to the saw.
  3. Adjust the depth and angle of the blade according to the material to be cut.
  4. Position the material to be cut on the saw table, ensuring it is securely clamped or held in place.
  5. Turn on the compressed air supply and then the saw.
  6. Use the trigger to slowly lower the blade onto the material, making sure it stays in line with the cutting mark.
  7. Continue cutting through the material, keeping a steady and consistent pace.
  8. Once the cut is complete, turn off the saw and wait for the blade to come to a complete stop before removing the material and inspecting the cut.

It's important to follow the manufacturer's instructions and guidelines when using a Steel Blade Pneumatic Cut off Saw, as misuse can lead to injury or damage to the saw or material being cut.
