STANDARD T-410x1500 Solid Base Precision Lathe

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

Introducing the STANDARD T-410x1500 Solid Base Precision Lathe – Your Ultimate Metal Lathe Tool.

Are you in search of a dependable and high-performance metal lathe tool? Look no further! Our STANDARD T-410x1500 Solid Base Precision Lathe is the perfect companion for your machining needs. Crafted with precision engineering and designed to meet the demands of professional workshops and hobbyists alike, this lathe is the epitome of reliability and versatility.

Key Features:

  1. Solid Base Stability: The robust construction of the STANDARD T-410x1500 ensures exceptional stability and minimized vibrations, providing a smooth and accurate machining experience.

  2. Precision Machining: With an advanced spindle and tailstock assembly, this lathe offers precise control over your workpiece, allowing you to achieve tight tolerances and fine finishes.

  3. Ample Work Capacity: The 1500mm (59") between centers capacity of this lathe makes it suitable for a wide range of projects, from small intricate parts to longer workpieces.

  4. Variable Speed Control: The adjustable speed range empowers you to work with various materials and tailor the machine's performance to your specific requirements.

  5. Thread Cutting: Our lathe is equipped with a quick-change gearbox, making thread cutting a breeze. Whether you're threading bolts or creating custom threads, this feature simplifies the process.

  6. User-Friendly Design: Designed with the operator in mind, the STANDARD T-410x1500 features intuitive controls, a comprehensive safety system, and easy maintenance access points.

Optimized for "Metal Lathe Tools," our STANDARD T-410x1500 Solid Base Precision Lathe is a versatile and robust machine that ensures you achieve exceptional results with every project. Whether you're a professional machinist, engineer, or a passionate hobbyist, this lathe is a valuable addition to your workshop, helping you take your metalworking to the next level.

Invest in quality, precision, and performance – choose the STANDARD T-410x1500 Solid Base Precision Lathe for all your metalworking needs.

Machine features:

  • Equipped with an interlocking mech. this machine boasts a considerable safety design with vertical & horizontal feeds.
  • The spindle bore is supported by precision roller bearings.
  • A removable gap facilitates workpieces with larger diameters, while the efficient gearbox can be used to produce a variety of feeds and thread cuts.
  • This machine is designed to meet national standards and earn worldwide certifications, such as CE and SGS. Its speed changing levers are simple to use.
  • The speed change levers are easy to operate.
  • This machine is equipped with full gear drive and double rod operation, eliminating the need to change out the hanging wheel, and it can accommodate a wide variety of knives and pitches.
  • This lathe is ideal for typical tasks, including turning, end-facing, tapering, and threading, as well as special operations like contouring, cutting outer and inner cylindrical surfaces, and multi-tool turning.
Specifications - Metric Measurements
  • Swing over bed - Φ410mm
  • Swing over saddle - Φ255mm
  • Swing in gap - Φ580mm
  • Center height - 205mm
  • Distance between centers - 1500mm
  • Width of bed - 250mm
  • Max. section of tool - 20x20mm
  • Max. travel of cross slide - 210mm
  • Travel of compound rest - 140mm
  • Spindle bore - 52mm
  • Spindle nose - D1-6
  • Taper of spindle bore - MT6
  • Range of spindle speed - 16 changes 25-1800r/min
  • Leadscrew pitch - 4 T.P.I
  • Longitudinal feeds range - 0.05-1.7mm/rev
  • Cross feeds range - 0.025-0.85mm
  • Threads range - 0.2-14mm
  • Diametrical pitch range - 21kinds 8-44D.P
  • Module pitches range - 18kinds 0.3-3.5M.P.
  • Diameter of tailstock sleeve - 50mm
  • Travel of tailstock sleeve -120mm
  • Taper of tailstock sleeve - MT4
  • Main motor - 3.3kW
  • Coolant pump - 90w = 0.12 HP
  • Dimension - 1940mm×850mm×1320mm
  • Packing size - 2070mm×940mm×1600mm
  • Net Weight - 1550kg
  • Gross Weight - 1760kg
Specifications - Imperial Measurements
  • Swing over bed - 16.14 inches
  • Swing over saddle - 10.04 inches
  • Swing in gap - 22.83 inches
  • Center height - 8.07 inches
  • Distance between centers - 59.06 inches
  • Width of bed - 9.84 inches
  • Max. section of tool - 0.79 x 0.79 inches
  • Max. travel of cross slide - 8.27 inches
  • Travel of compound rest - 5.51 inches
  • Spindle bore - 2.05 inches
  • Spindle nose - D1-6
  • Taper of spindle bore - MT6
  • Range of spindle speed - 16 changes 25-1800r/min
  • Leadscrew pitch - 4 T.P.I
  • Longitudinal feeds range - 0.002-0.067 inches/rev
  • Cross feeds range - 0.001-0.033 inches
  • Threads range - 0.008-0.55 inches
  • Diametrical pitch range - 21kinds; 8-44D.P
  • Module pitches range - 18kinds; 0.012-0.137 inches
  • Diameter of tailstock sleeve - 1.97 inches
  • Travel of tailstock sleeve - 4.72 inches
  • Taper of tailstock sleeve - MT4
  • Main motor - 4.43 HP
  • Coolant pump - 0.12 HP
  • Dimension - 76.38 inches x 33.46 inches x 51.97 inches
  • Packing size - 81.50 inches x 37.01 inches x 63.00 inches
  • Net Weight - 3417.15 lbs
  • Gross Weight - 3880.78 lbs
Standard Accessories
  • 3-Jaw Chuck
  • Change Gears Set
  • Chasing Dial Indicator
  • Reduction Sleeve
  • Dead Centers
  • Full Length Splash Guard
  • Coolant System
  • Brake System
  • 4 Jaw Chuck
  • Face Plate
  • Steady Rest
  • Follow Rest
  • Tool Box & Tools
Optional Accessories
  • Taper Turning Attachment
  • Live Center
  • Work Light
  • Leadscrew Guard
  • Digital Readout

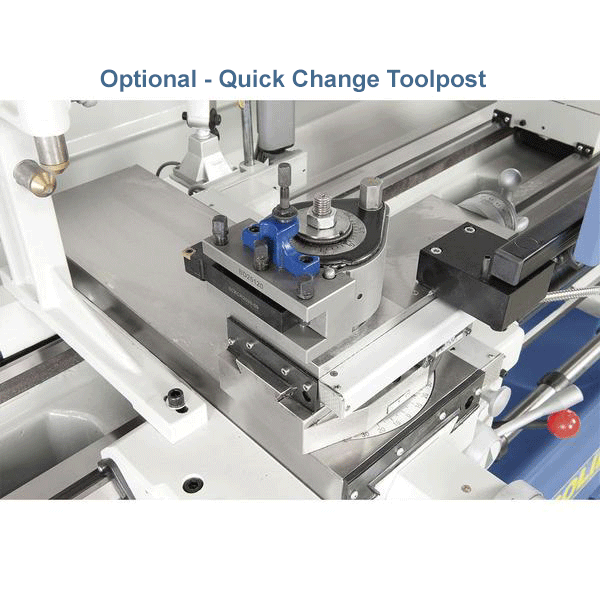

  • Quick Change Tool Post
  • Chuck Guard
  • Digital readout (2 Axis)
  • Drill chuck and drill arbor
Delivery & Manual

Machines are strictly built on order. (Build-on-Demand)

Delivery 10-14 Weeks from Deposit


How to use a Solid Base precision lathe

  1. Set up the workpiece: Secure the workpiece in the chuck or between centers and tighten it. Make sure that the workpiece is centered and aligned with the axis of the spindle.

  2. Select the cutting tool: Choose the appropriate cutting tool for the operation you want to perform. Mount the cutting tool in the tool post and tighten it securely.

  3. Choose the speed: Use the gearbox to select the speed that is appropriate for the material and the operation you are performing.

  4. Adjust the feed rate: The feed rate is the rate at which the cutting tool moves across the workpiece. Adjust the feed rate to the desired setting using the leadscrew or the feed control lever.

  5. Start cutting: Turn on the lathe and engage the spindle. Begin cutting the workpiece by gradually moving the cutting tool into the material. Use the cross slide and compound rest to control the direction and angle of the cut.

  6. Monitor the cutting process: Observe the cutting process and make adjustments as necessary to ensure that the workpiece is being machined correctly.

  7. Stop the lathe: After completing the cutting operation, turn off the lathe and disengage the spindle. Remove the cutting tool and the workpiece, and clean up the machine.

It is important to note that operating a medium-duty solid base precision lathe requires proper training and experience. Before using this type of machine, it is recommended to become familiar with its operation and safety procedures, and to always wear appropriate personal protective equipment, such as safety glasses and hearing protection.

Description

Introducing the STANDARD T-410x1500 Solid Base Precision Lathe – Your Ultimate Metal Lathe Tool.

Are you in search of a dependable and high-performance metal lathe tool? Look no further! Our STANDARD T-410x1500 Solid Base Precision Lathe is the perfect companion for your machining needs. Crafted with precision engineering and designed to meet the demands of professional workshops and hobbyists alike, this lathe is the epitome of reliability and versatility.

Key Features:

  1. Solid Base Stability: The robust construction of the STANDARD T-410x1500 ensures exceptional stability and minimized vibrations, providing a smooth and accurate machining experience.

  2. Precision Machining: With an advanced spindle and tailstock assembly, this lathe offers precise control over your workpiece, allowing you to achieve tight tolerances and fine finishes.

  3. Ample Work Capacity: The 1500mm (59") between centers capacity of this lathe makes it suitable for a wide range of projects, from small intricate parts to longer workpieces.

  4. Variable Speed Control: The adjustable speed range empowers you to work with various materials and tailor the machine's performance to your specific requirements.

  5. Thread Cutting: Our lathe is equipped with a quick-change gearbox, making thread cutting a breeze. Whether you're threading bolts or creating custom threads, this feature simplifies the process.

  6. User-Friendly Design: Designed with the operator in mind, the STANDARD T-410x1500 features intuitive controls, a comprehensive safety system, and easy maintenance access points.

Optimized for "Metal Lathe Tools," our STANDARD T-410x1500 Solid Base Precision Lathe is a versatile and robust machine that ensures you achieve exceptional results with every project. Whether you're a professional machinist, engineer, or a passionate hobbyist, this lathe is a valuable addition to your workshop, helping you take your metalworking to the next level.

Invest in quality, precision, and performance – choose the STANDARD T-410x1500 Solid Base Precision Lathe for all your metalworking needs.

Machine features:

  • Equipped with an interlocking mech. this machine boasts a considerable safety design with vertical & horizontal feeds.
  • The spindle bore is supported by precision roller bearings.
  • A removable gap facilitates workpieces with larger diameters, while the efficient gearbox can be used to produce a variety of feeds and thread cuts.
  • This machine is designed to meet national standards and earn worldwide certifications, such as CE and SGS. Its speed changing levers are simple to use.
  • The speed change levers are easy to operate.
  • This machine is equipped with full gear drive and double rod operation, eliminating the need to change out the hanging wheel, and it can accommodate a wide variety of knives and pitches.
  • This lathe is ideal for typical tasks, including turning, end-facing, tapering, and threading, as well as special operations like contouring, cutting outer and inner cylindrical surfaces, and multi-tool turning.
Specifications - Metric Measurements
  • Swing over bed - Φ410mm
  • Swing over saddle - Φ255mm
  • Swing in gap - Φ580mm
  • Center height - 205mm
  • Distance between centers - 1500mm
  • Width of bed - 250mm
  • Max. section of tool - 20x20mm
  • Max. travel of cross slide - 210mm
  • Travel of compound rest - 140mm
  • Spindle bore - 52mm
  • Spindle nose - D1-6
  • Taper of spindle bore - MT6
  • Range of spindle speed - 16 changes 25-1800r/min
  • Leadscrew pitch - 4 T.P.I
  • Longitudinal feeds range - 0.05-1.7mm/rev
  • Cross feeds range - 0.025-0.85mm
  • Threads range - 0.2-14mm
  • Diametrical pitch range - 21kinds 8-44D.P
  • Module pitches range - 18kinds 0.3-3.5M.P.
  • Diameter of tailstock sleeve - 50mm
  • Travel of tailstock sleeve -120mm
  • Taper of tailstock sleeve - MT4
  • Main motor - 3.3kW
  • Coolant pump - 90w = 0.12 HP
  • Dimension - 1940mm×850mm×1320mm
  • Packing size - 2070mm×940mm×1600mm
  • Net Weight - 1550kg
  • Gross Weight - 1760kg
Specifications - Imperial Measurements
  • Swing over bed - 16.14 inches
  • Swing over saddle - 10.04 inches
  • Swing in gap - 22.83 inches
  • Center height - 8.07 inches
  • Distance between centers - 59.06 inches
  • Width of bed - 9.84 inches
  • Max. section of tool - 0.79 x 0.79 inches
  • Max. travel of cross slide - 8.27 inches
  • Travel of compound rest - 5.51 inches
  • Spindle bore - 2.05 inches
  • Spindle nose - D1-6
  • Taper of spindle bore - MT6
  • Range of spindle speed - 16 changes 25-1800r/min
  • Leadscrew pitch - 4 T.P.I
  • Longitudinal feeds range - 0.002-0.067 inches/rev
  • Cross feeds range - 0.001-0.033 inches
  • Threads range - 0.008-0.55 inches
  • Diametrical pitch range - 21kinds; 8-44D.P
  • Module pitches range - 18kinds; 0.012-0.137 inches
  • Diameter of tailstock sleeve - 1.97 inches
  • Travel of tailstock sleeve - 4.72 inches
  • Taper of tailstock sleeve - MT4
  • Main motor - 4.43 HP
  • Coolant pump - 0.12 HP
  • Dimension - 76.38 inches x 33.46 inches x 51.97 inches
  • Packing size - 81.50 inches x 37.01 inches x 63.00 inches
  • Net Weight - 3417.15 lbs
  • Gross Weight - 3880.78 lbs
Standard Accessories
  • 3-Jaw Chuck
  • Change Gears Set
  • Chasing Dial Indicator
  • Reduction Sleeve
  • Dead Centers
  • Full Length Splash Guard
  • Coolant System
  • Brake System
  • 4 Jaw Chuck
  • Face Plate
  • Steady Rest
  • Follow Rest
  • Tool Box & Tools
Optional Accessories
  • Taper Turning Attachment
  • Live Center
  • Work Light
  • Leadscrew Guard
  • Digital Readout
  • Quick Change Tool Post
  • Chuck Guard
  • Digital readout (2 Axis)
  • Drill chuck and drill arbor
Delivery & Manual

Machines are strictly built on order. (Build-on-Demand)

Delivery 10-14 Weeks from Deposit

How to use a Solid Base precision lathe

  1. Set up the workpiece: Secure the workpiece in the chuck or between centers and tighten it. Make sure that the workpiece is centered and aligned with the axis of the spindle.

  2. Select the cutting tool: Choose the appropriate cutting tool for the operation you want to perform. Mount the cutting tool in the tool post and tighten it securely.

  3. Choose the speed: Use the gearbox to select the speed that is appropriate for the material and the operation you are performing.

  4. Adjust the feed rate: The feed rate is the rate at which the cutting tool moves across the workpiece. Adjust the feed rate to the desired setting using the leadscrew or the feed control lever.

  5. Start cutting: Turn on the lathe and engage the spindle. Begin cutting the workpiece by gradually moving the cutting tool into the material. Use the cross slide and compound rest to control the direction and angle of the cut.

  6. Monitor the cutting process: Observe the cutting process and make adjustments as necessary to ensure that the workpiece is being machined correctly.

  7. Stop the lathe: After completing the cutting operation, turn off the lathe and disengage the spindle. Remove the cutting tool and the workpiece, and clean up the machine.

It is important to note that operating a medium-duty solid base precision lathe requires proper training and experience. Before using this type of machine, it is recommended to become familiar with its operation and safety procedures, and to always wear appropriate personal protective equipment, such as safety glasses and hearing protection.

*Information shown may differ or change without warning*

Product Search

Description

Introducing the STANDARD T-410x1500 Solid Base Precision Lathe – Your Ultimate Metal Lathe Tool.

Are you in search of a dependable and high-performance metal lathe tool? Look no further! Our STANDARD T-410x1500 Solid Base Precision Lathe is the perfect companion for your machining needs. Crafted with precision engineering and designed to meet the demands of professional workshops and hobbyists alike, this lathe is the epitome of reliability and versatility.

Key Features:

  1. Solid Base Stability: The robust construction of the STANDARD T-410x1500 ensures exceptional stability and minimized vibrations, providing a smooth and accurate machining experience.

  2. Precision Machining: With an advanced spindle and tailstock assembly, this lathe offers precise control over your workpiece, allowing you to achieve tight tolerances and fine finishes.

  3. Ample Work Capacity: The 1500mm (59") between centers capacity of this lathe makes it suitable for a wide range of projects, from small intricate parts to longer workpieces.

  4. Variable Speed Control: The adjustable speed range empowers you to work with various materials and tailor the machine's performance to your specific requirements.

  5. Thread Cutting: Our lathe is equipped with a quick-change gearbox, making thread cutting a breeze. Whether you're threading bolts or creating custom threads, this feature simplifies the process.

  6. User-Friendly Design: Designed with the operator in mind, the STANDARD T-410x1500 features intuitive controls, a comprehensive safety system, and easy maintenance access points.

Optimized for "Metal Lathe Tools," our STANDARD T-410x1500 Solid Base Precision Lathe is a versatile and robust machine that ensures you achieve exceptional results with every project. Whether you're a professional machinist, engineer, or a passionate hobbyist, this lathe is a valuable addition to your workshop, helping you take your metalworking to the next level.

Invest in quality, precision, and performance – choose the STANDARD T-410x1500 Solid Base Precision Lathe for all your metalworking needs.

Machine features:

  • Equipped with an interlocking mech. this machine boasts a considerable safety design with vertical & horizontal feeds.
  • The spindle bore is supported by precision roller bearings.
  • A removable gap facilitates workpieces with larger diameters, while the efficient gearbox can be used to produce a variety of feeds and thread cuts.
  • This machine is designed to meet national standards and earn worldwide certifications, such as CE and SGS. Its speed changing levers are simple to use.
  • The speed change levers are easy to operate.
  • This machine is equipped with full gear drive and double rod operation, eliminating the need to change out the hanging wheel, and it can accommodate a wide variety of knives and pitches.
  • This lathe is ideal for typical tasks, including turning, end-facing, tapering, and threading, as well as special operations like contouring, cutting outer and inner cylindrical surfaces, and multi-tool turning.
Specifications - Metric Measurements
  • Swing over bed - Φ410mm
  • Swing over saddle - Φ255mm
  • Swing in gap - Φ580mm
  • Center height - 205mm
  • Distance between centers - 1500mm
  • Width of bed - 250mm
  • Max. section of tool - 20x20mm
  • Max. travel of cross slide - 210mm
  • Travel of compound rest - 140mm
  • Spindle bore - 52mm
  • Spindle nose - D1-6
  • Taper of spindle bore - MT6
  • Range of spindle speed - 16 changes 25-1800r/min
  • Leadscrew pitch - 4 T.P.I
  • Longitudinal feeds range - 0.05-1.7mm/rev
  • Cross feeds range - 0.025-0.85mm
  • Threads range - 0.2-14mm
  • Diametrical pitch range - 21kinds 8-44D.P
  • Module pitches range - 18kinds 0.3-3.5M.P.
  • Diameter of tailstock sleeve - 50mm
  • Travel of tailstock sleeve -120mm
  • Taper of tailstock sleeve - MT4
  • Main motor - 3.3kW
  • Coolant pump - 90w = 0.12 HP
  • Dimension - 1940mm×850mm×1320mm
  • Packing size - 2070mm×940mm×1600mm
  • Net Weight - 1550kg
  • Gross Weight - 1760kg
Specifications - Imperial Measurements
  • Swing over bed - 16.14 inches
  • Swing over saddle - 10.04 inches
  • Swing in gap - 22.83 inches
  • Center height - 8.07 inches
  • Distance between centers - 59.06 inches
  • Width of bed - 9.84 inches
  • Max. section of tool - 0.79 x 0.79 inches
  • Max. travel of cross slide - 8.27 inches
  • Travel of compound rest - 5.51 inches
  • Spindle bore - 2.05 inches
  • Spindle nose - D1-6
  • Taper of spindle bore - MT6
  • Range of spindle speed - 16 changes 25-1800r/min
  • Leadscrew pitch - 4 T.P.I
  • Longitudinal feeds range - 0.002-0.067 inches/rev
  • Cross feeds range - 0.001-0.033 inches
  • Threads range - 0.008-0.55 inches
  • Diametrical pitch range - 21kinds; 8-44D.P
  • Module pitches range - 18kinds; 0.012-0.137 inches
  • Diameter of tailstock sleeve - 1.97 inches
  • Travel of tailstock sleeve - 4.72 inches
  • Taper of tailstock sleeve - MT4
  • Main motor - 4.43 HP
  • Coolant pump - 0.12 HP
  • Dimension - 76.38 inches x 33.46 inches x 51.97 inches
  • Packing size - 81.50 inches x 37.01 inches x 63.00 inches
  • Net Weight - 3417.15 lbs
  • Gross Weight - 3880.78 lbs
Standard Accessories
  • 3-Jaw Chuck
  • Change Gears Set
  • Chasing Dial Indicator
  • Reduction Sleeve
  • Dead Centers
  • Full Length Splash Guard
  • Coolant System
  • Brake System
  • 4 Jaw Chuck
  • Face Plate
  • Steady Rest
  • Follow Rest
  • Tool Box & Tools
Optional Accessories
  • Taper Turning Attachment
  • Live Center
  • Work Light
  • Leadscrew Guard
  • Digital Readout
  • Quick Change Tool Post
  • Chuck Guard
  • Digital readout (2 Axis)
  • Drill chuck and drill arbor
Delivery & Manual

Machines are strictly built on order. (Build-on-Demand)

Delivery 10-14 Weeks from Deposit

How to use a Solid Base precision lathe

  1. Set up the workpiece: Secure the workpiece in the chuck or between centers and tighten it. Make sure that the workpiece is centered and aligned with the axis of the spindle.

  2. Select the cutting tool: Choose the appropriate cutting tool for the operation you want to perform. Mount the cutting tool in the tool post and tighten it securely.

  3. Choose the speed: Use the gearbox to select the speed that is appropriate for the material and the operation you are performing.

  4. Adjust the feed rate: The feed rate is the rate at which the cutting tool moves across the workpiece. Adjust the feed rate to the desired setting using the leadscrew or the feed control lever.

  5. Start cutting: Turn on the lathe and engage the spindle. Begin cutting the workpiece by gradually moving the cutting tool into the material. Use the cross slide and compound rest to control the direction and angle of the cut.

  6. Monitor the cutting process: Observe the cutting process and make adjustments as necessary to ensure that the workpiece is being machined correctly.

  7. Stop the lathe: After completing the cutting operation, turn off the lathe and disengage the spindle. Remove the cutting tool and the workpiece, and clean up the machine.

It is important to note that operating a medium-duty solid base precision lathe requires proper training and experience. Before using this type of machine, it is recommended to become familiar with its operation and safety procedures, and to always wear appropriate personal protective equipment, such as safety glasses and hearing protection.

*Information shown may differ or change without warning*
