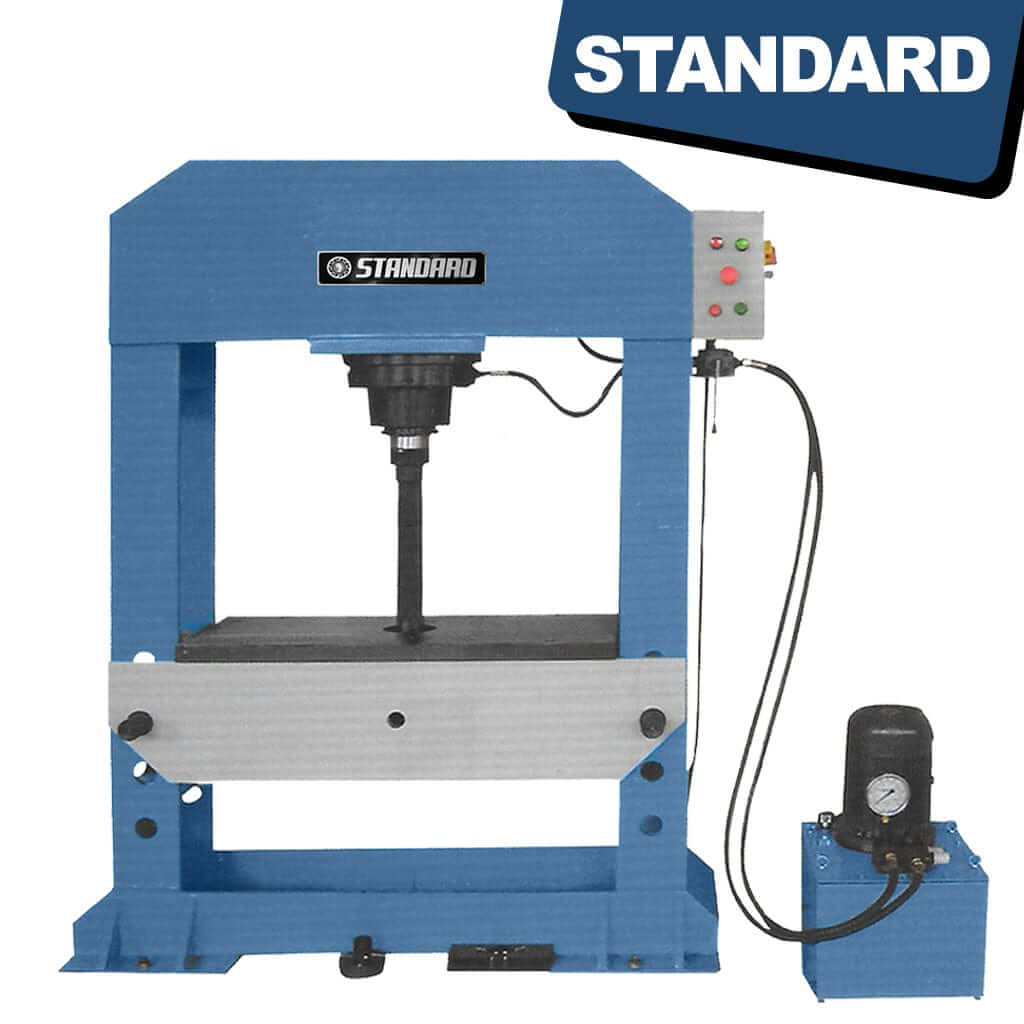

STANDARD HG-400 Hydraulic Garage Press 400 tons

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

Standard HG-400 Hydraulic Garage Press with 400-ton Capacity:

A hydraulic garage press with 400-ton capacity is a heavy-duty machine used for pressing, straightening, and bending metal parts in a garage or industrial setting. It works by using hydraulic oil to generate immense pressure, which is applied through a series of cylinders and pistons to exert force on the metal workpiece. This press typically has a large frame, with a bed or platen for holding the workpiece, and can accommodate large and heavy items. The 400-ton capacity refers to the maximum amount of force that the press can exert, making it suitable for heavy-duty tasks.

Main Feature:

  • Hydraulic press include replaceable top tools V-block and support table with stops.
  • Table can be lifted through a chain driven by the main cylinder
  • Micro-switch for traverse adjustment
  • Operating modus: Semi-automatic
Specification
  • Capacity - 4000 kN = 899224.87 lbs
  • Pressure - 31.5 Mpa = 4568.08 psi
  • Piston Travel - 300 mm = 11.811 inches
  • Table Travel - 405 mm = 15.9449 inches
  • Table Size - 800x1200mm = 31.4961x47.2441 inches
  • Machine Dimensions - 2300x1000x2900mm = 90.5512x39.3701x114.1732 inches
  • Weight - 6500kg = 14330.05 lbs
Standard Features
  • Chrome Plated Cylinder
  • Welded Steel Frame
  • Oil Pressure Gauge
  • Pressure Adjustment
  • User Manual
  • 2 Years of Warranty
  • CE Certification

Optional Extras
  • Pressure Regulator
  • V Block
  • Automatic Control
  • Foot Pedal
  • Table
Delivery

Build on demand only

Delivery is 7-12 Weeks from Deposit

Catalogue

Machine Specifications may differ to Website display. Catalogue for reference purposes only. To view available builds, please refer to website.

Hydraulic Presses and Iron Workers Catalogue


How to use a Hydraulic Garage Press

To use a hydraulic garage press with 400-ton capacity, follow these steps:

  1. Prepare the workpiece: Clean and inspect the metal part to be pressed and ensure it is free of any defects or sharp edges that could damage the press.

  2. Position the workpiece: Place the workpiece on the bed or platen of the press, ensuring it is secure and properly aligned.

  3. Adjust the press: Use the controls to raise or lower the press arm to the desired height and to adjust the pressure settings to match the requirements of the job.

  4. Activate the press: Turn on the power to the press and activate the hydraulic system. Slowly apply pressure to the workpiece until it is fully pressed.

  5. Monitor the process: Observe the workpiece carefully to ensure it is being pressed correctly. If any adjustments are needed, use the controls to adjust the press as required.

  6. Release the pressure: Once the pressing process is complete, turn off the power to the press and release the hydraulic pressure.

  7. Remove the workpiece: Carefully remove the pressed workpiece from the press and inspect it to ensure it meets your requirements.

Note: Always follow the manufacturer's instructions and safety guidelines when using a hydraulic garage press. Never exceed the maximum capacity of the press and always use proper protective gear, such as safety glasses and gloves.
