Experience Versatility and Accuracy with the STANDARD ETB-800x2000 Flat Bed CNC Lathe - STANDARD Direct

STANDARD ETB-800x2000 Flat Bed CNC Lathe - 3-speed headstock

*Excludes Local Taxes*

*Products are built on order, general delivery is 8~16weeks and include Sea Freight to most ports

Description

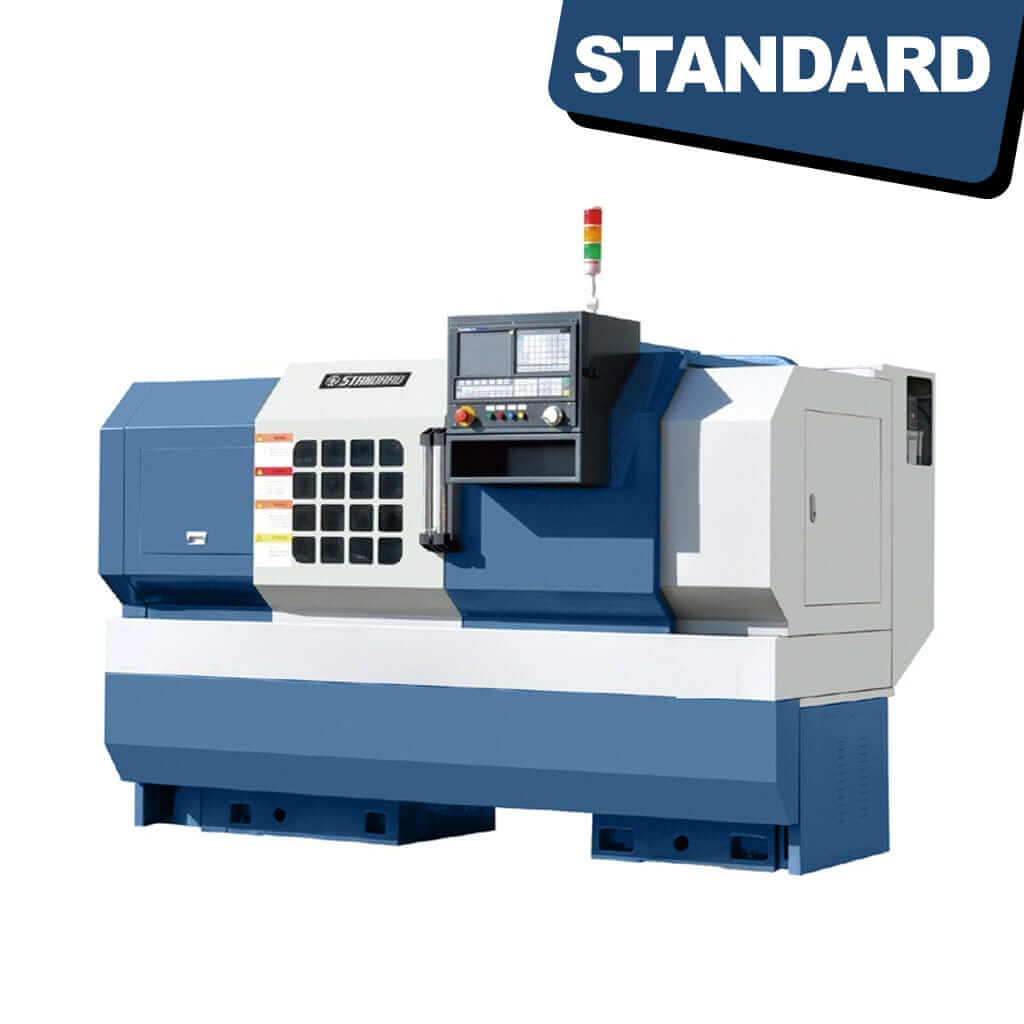

Introducing the STANDARD ETB-800x2000 Flat Bed CNC Lathe with a versatile 3-speed headstock.

Engineered for precision and performance, this large flat bed CNC lathe is a cornerstone for machining excellence in your workshop.

Crafted with meticulous attention to detail, the ETB-800x2000 boasts a sturdy flat bed design, providing ample space for large workpieces while ensuring stability and accuracy throughout the machining process. Its generous 800mm swing over bed and 2000mm between centers offer remarkable versatility, accommodating a wide range of projects with ease.

Equipped with a dynamic 3-speed headstock, this CNC lathe empowers operators with enhanced control over spindle speeds, optimizing efficiency for various machining tasks. Whether you're tackling intricate turning operations or heavy-duty machining projects, the flexibility of multiple speed options ensures superior results every time.

The STANDARD ETB-800x2000 Flat Bed CNC Lathe is engineered to deliver consistent precision and reliability, thanks to its robust construction and advanced technology. With user-friendly controls and intuitive interface, operators can unleash their creativity with confidence, knowing that this machine will meet the demands of even the most challenging applications.

Experience the epitome of machining excellence with the STANDARD ETB-800x2000 Flat Bed CNC Lathe. Elevate your workshop capabilities and unlock limitless possibilities for innovation and productivity. Invest in quality, invest in performance – invest in the ETB-800x2000 for your machining needs.

Upgrade your workshop with the ultimate solution in large flat bed CNC lathe technology. Explore the STANDARD ETB-800x2000 today and unleash the full potential of your machining operations.

Main Features:

  • Braced machine bed made of grey cast iron
  • Elaborate spindle bearing
  • Bed guideways inductively hardened
  • Dovetail slot lathe carriage inductively hardened
Specifications
  • Max. Swing over bed - Ø800mm = 31.5 inches
  • Max. Swing over carriage - Ø540mm = 21.26 inches
  • Max. cutting length - 2000mm = 78.74 inches
  • Spindle nose - A2-8
  • Spindle bore - Ø86mm = 3.39 inches
  • Taper of spindle bore - 1:20
  • Chuck - 254mm = 10 inches
  • Range of spindle speed - 100-500rpm
  • Travels
    • X-Axis travel - 450mm = 17.72 inches
    • Z-Axis travel - 2000mm = 78.74 inches
  • Hydraulic turret - 4 (Option: 6 or 8)
  • Max. section of tool - 32x32mm = 1.26x1.26 inches
  • Travel of tailstock sleeve - 305mm = 12.01 inches
  • Diameter/ Taper of tailstock sleeve - Ø102mm/MT5 = 4.02 inches
  • Main motor power - 11kW = 14.75 hp
  • Feed speeds
    • X-Rapid speed - 10Nm
    • Z-Rapid speed - 15Nm
  • Coolant pump power - 250W = 0.33 hp
  • Bed width - 460mm =  18.11 inches
  • Machine dimensions - 3900x1600x1830mm = 153.54x62.99x72.05 inches
  • Weight - 4600kg = 10,141.65 lbs
Standard Accessories
  • Wrenches
  • Reduction sleeve
  • Alloy center
  • Three-jaw Scroll chuck
  • Frequency conversion main motor
  • Four position electric turret
  • Auto lubrication coolant system
Optional Equipment
  • AC servo motor
  • Pneumatic or hydraulic chuck
  • Horizontal six or eight-station
  • Tool post
    Delivery

      Due to the many options offered, these machines are strictly built on order. Feel free to customize and build your ideal machine.

      Delivery 10-14 Weeks from Deposit


      How to use a Flat Bed CNC Lathe
      1. Program creation: Create a CNC program using specialized software, which will contain instructions for the machine to follow during the cutting and shaping process. The program can be created using CAD/CAM software or manually inputted using G-code.

      2. Workpiece preparation: Secure the workpiece to the lathe bed using clamps or a chuck. Make sure the workpiece is properly aligned and centered on the spindle.

      3. Tool selection: Select and install the appropriate cutting tool for the job. This may include turning, boring, or drilling tools.

      4. Machine setup: Configure the machine settings according to the requirements of the job. This may include setting the spindle speed, feed rate, and cutting depth.

      5. Machine operation: Start the machine and allow it to run through the program. Monitor the machine during operation and make any necessary adjustments as needed.

      6. Inspection: Once the machining is complete, inspect the workpiece to ensure it meets the desired specifications.

      It is important to follow safety guidelines, such as wearing appropriate personal protective equipment and keeping hands and loose clothing away from the cutting area while the machine is in operation.

      It is also important to be familiar with the machine's manual and understand its functions and safety protocols before using it.

      Description

      Introducing the STANDARD ETB-800x2000 Flat Bed CNC Lathe with a versatile 3-speed headstock.

      Engineered for precision and performance, this large flat bed CNC lathe is a cornerstone for machining excellence in your workshop.

      Crafted with meticulous attention to detail, the ETB-800x2000 boasts a sturdy flat bed design, providing ample space for large workpieces while ensuring stability and accuracy throughout the machining process. Its generous 800mm swing over bed and 2000mm between centers offer remarkable versatility, accommodating a wide range of projects with ease.

      Equipped with a dynamic 3-speed headstock, this CNC lathe empowers operators with enhanced control over spindle speeds, optimizing efficiency for various machining tasks. Whether you're tackling intricate turning operations or heavy-duty machining projects, the flexibility of multiple speed options ensures superior results every time.

      The STANDARD ETB-800x2000 Flat Bed CNC Lathe is engineered to deliver consistent precision and reliability, thanks to its robust construction and advanced technology. With user-friendly controls and intuitive interface, operators can unleash their creativity with confidence, knowing that this machine will meet the demands of even the most challenging applications.

      Experience the epitome of machining excellence with the STANDARD ETB-800x2000 Flat Bed CNC Lathe. Elevate your workshop capabilities and unlock limitless possibilities for innovation and productivity. Invest in quality, invest in performance – invest in the ETB-800x2000 for your machining needs.

      Upgrade your workshop with the ultimate solution in large flat bed CNC lathe technology. Explore the STANDARD ETB-800x2000 today and unleash the full potential of your machining operations.

      Main Features:

      • Braced machine bed made of grey cast iron
      • Elaborate spindle bearing
      • Bed guideways inductively hardened
      • Dovetail slot lathe carriage inductively hardened
      Specifications
      • Max. Swing over bed - Ø800mm = 31.5 inches
      • Max. Swing over carriage - Ø540mm = 21.26 inches
      • Max. cutting length - 2000mm = 78.74 inches
      • Spindle nose - A2-8
      • Spindle bore - Ø86mm = 3.39 inches
      • Taper of spindle bore - 1:20
      • Chuck - 254mm = 10 inches
      • Range of spindle speed - 100-500rpm
      • Travels
        • X-Axis travel - 450mm = 17.72 inches
        • Z-Axis travel - 2000mm = 78.74 inches
      • Hydraulic turret - 4 (Option: 6 or 8)
      • Max. section of tool - 32x32mm = 1.26x1.26 inches
      • Travel of tailstock sleeve - 305mm = 12.01 inches
      • Diameter/ Taper of tailstock sleeve - Ø102mm/MT5 = 4.02 inches
      • Main motor power - 11kW = 14.75 hp
      • Feed speeds
        • X-Rapid speed - 10Nm
        • Z-Rapid speed - 15Nm
      • Coolant pump power - 250W = 0.33 hp
      • Bed width - 460mm =  18.11 inches
      • Machine dimensions - 3900x1600x1830mm = 153.54x62.99x72.05 inches
      • Weight - 4600kg = 10,141.65 lbs
      Standard Accessories
      • Wrenches
      • Reduction sleeve
      • Alloy center
      • Three-jaw Scroll chuck
      • Frequency conversion main motor
      • Four position electric turret
      • Auto lubrication coolant system
      Optional Equipment
      • AC servo motor
      • Pneumatic or hydraulic chuck
      • Horizontal six or eight-station
      • Tool post
        Delivery

          Due to the many options offered, these machines are strictly built on order. Feel free to customize and build your ideal machine.

          Delivery 10-14 Weeks from Deposit

          How to use a Flat Bed CNC Lathe
          1. Program creation: Create a CNC program using specialized software, which will contain instructions for the machine to follow during the cutting and shaping process. The program can be created using CAD/CAM software or manually inputted using G-code.

          2. Workpiece preparation: Secure the workpiece to the lathe bed using clamps or a chuck. Make sure the workpiece is properly aligned and centered on the spindle.

          3. Tool selection: Select and install the appropriate cutting tool for the job. This may include turning, boring, or drilling tools.

          4. Machine setup: Configure the machine settings according to the requirements of the job. This may include setting the spindle speed, feed rate, and cutting depth.

          5. Machine operation: Start the machine and allow it to run through the program. Monitor the machine during operation and make any necessary adjustments as needed.

          6. Inspection: Once the machining is complete, inspect the workpiece to ensure it meets the desired specifications.

          It is important to follow safety guidelines, such as wearing appropriate personal protective equipment and keeping hands and loose clothing away from the cutting area while the machine is in operation.

          It is also important to be familiar with the machine's manual and understand its functions and safety protocols before using it.

          *Information shown may differ or change without warning*
