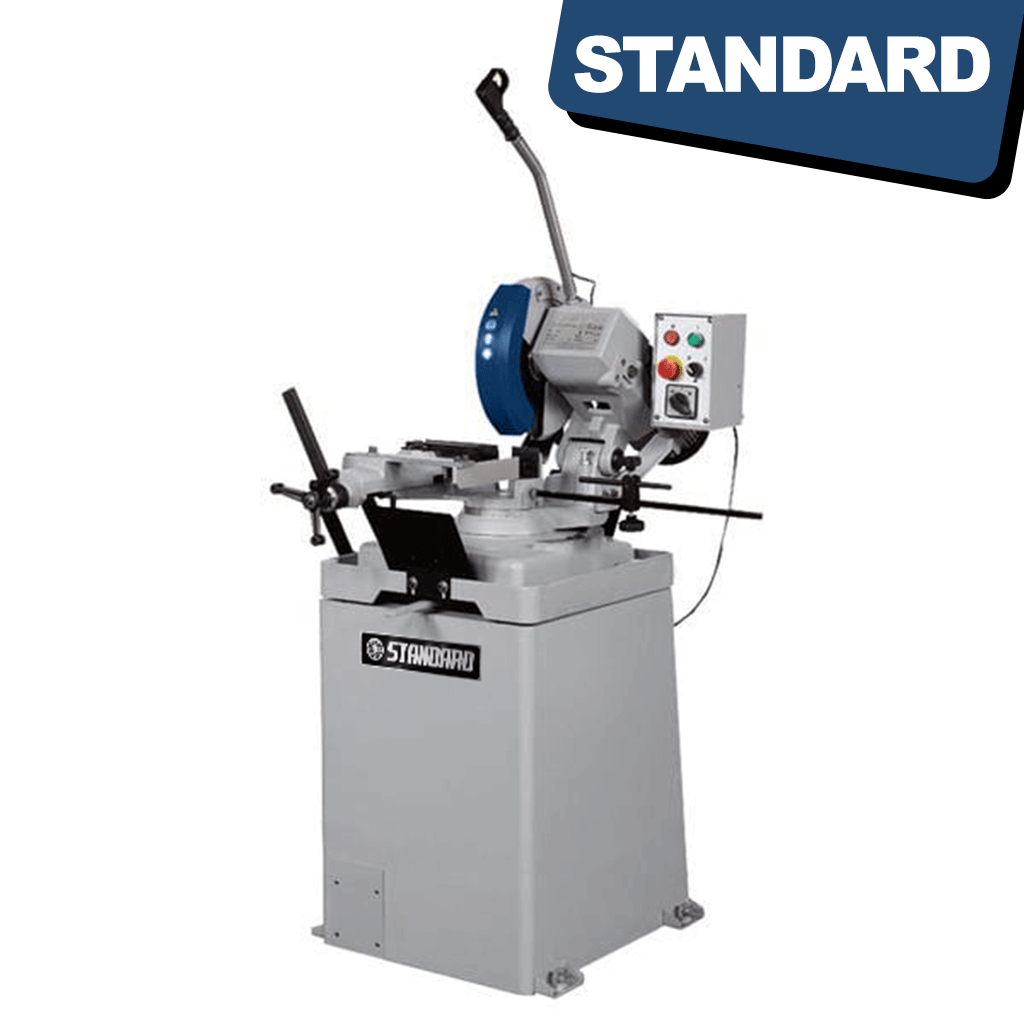

STANDARD CO-315 HSS Steel Blade Cut off Saw

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

Standard CO-315 HSS Steel Blade Cut off Saw - 315mm Diameter blade:

A Steel Blade Cut off Saw with a 315mm diameter blade is a power tool used to cut through materials such as metal, steel, or concrete. It typically consists of a circular saw blade mounted on a sturdy base, with an adjustable cutting angle and depth. The blade is powered by an electric motor, and the saw usually has safety features such as guards and emergency stop switches. The 315mm blade diameter indicates the size of the blade that is capable of cutting through materials with a thickness of up to approximately 100mm. These saws are commonly used in metal fabrication shops, construction sites, and industrial manufacturing facilities.

Specifications
  • 90° Cutting Capacity
    • Round Bar - Ø40mm = 1.57 inches
    • Round Pipe - Ø80mm = 3.15 inches
    • Square Pipe - 80x80mm = 3.15 x 3.15 inches
    • Rectangular Pipe - 100x70mm = 3.94 x 2.76 inches
  • 45° Cutting Capacity
    • Round Bar - Ø40mm = 1.57 inches
    • Round Pipe - Ø80mm = 3.15 inches
    • Square Pipe - 70x70mm = 2.76 x 2.76 inches
    • Rectangular Pipe - 80x70mm = 3.15 x 2.76 inches
  • Motor - 2.0-2.4kW = 2.68-3.22 horsepower
  • Blade Speed - 50-100rpm
  • Max. Pincer Width - 130mm = 5.12 inches
  • Blade Diameter - Ø315mm = 12.40 inches
  • Weight - 180kg = 396.83 pounds
Delivery

Machines are strictly built on order. (Build-on-Demand)

Delivery 10-14 Weeks from Deposit


How to use a Steel Blade Cut off Saw

Here are the general steps to use a Steel Blade Cut off Saw with a 315mm diameter blade:

  1. Wear personal protective equipment, including eye and ear protection, a dust mask, and gloves.
  2. Secure the material to be cut firmly on the saw's base, making sure it won't move during the cutting process.
  3. Adjust the saw's cutting angle and depth to the desired specifications.
  4. Turn on the saw and allow the blade to reach full speed before bringing it down to the material to be cut.
  5. Lower the blade onto the material, keeping it steady and moving it along the cutting line.
  6. Be patient and avoid forcing the blade through the material, letting it cut through at its own pace.
  7. After the cut is complete, release the trigger to stop the blade, and wait until it comes to a complete stop before lifting it off the material.
  8. Remove the cut material from the saw's base and turn off the saw.

It's important to follow the manufacturer's instructions and safety guidelines for the specific saw you are using. Also, make sure to maintain the saw and its blade regularly to ensure safe and efficient use.

Description

Standard CO-315 HSS Steel Blade Cut off Saw - 315mm Diameter blade:

A Steel Blade Cut off Saw with a 315mm diameter blade is a power tool used to cut through materials such as metal, steel, or concrete. It typically consists of a circular saw blade mounted on a sturdy base, with an adjustable cutting angle and depth. The blade is powered by an electric motor, and the saw usually has safety features such as guards and emergency stop switches. The 315mm blade diameter indicates the size of the blade that is capable of cutting through materials with a thickness of up to approximately 100mm. These saws are commonly used in metal fabrication shops, construction sites, and industrial manufacturing facilities.

Specifications
  • 90° Cutting Capacity
    • Round Bar - Ø40mm = 1.57 inches
    • Round Pipe - Ø80mm = 3.15 inches
    • Square Pipe - 80x80mm = 3.15 x 3.15 inches
    • Rectangular Pipe - 100x70mm = 3.94 x 2.76 inches
  • 45° Cutting Capacity
    • Round Bar - Ø40mm = 1.57 inches
    • Round Pipe - Ø80mm = 3.15 inches
    • Square Pipe - 70x70mm = 2.76 x 2.76 inches
    • Rectangular Pipe - 80x70mm = 3.15 x 2.76 inches
  • Motor - 2.0-2.4kW = 2.68-3.22 horsepower
  • Blade Speed - 50-100rpm
  • Max. Pincer Width - 130mm = 5.12 inches
  • Blade Diameter - Ø315mm = 12.40 inches
  • Weight - 180kg = 396.83 pounds
Delivery

Machines are strictly built on order. (Build-on-Demand)

Delivery 10-14 Weeks from Deposit

How to use a Steel Blade Cut off Saw

Here are the general steps to use a Steel Blade Cut off Saw with a 315mm diameter blade:

  1. Wear personal protective equipment, including eye and ear protection, a dust mask, and gloves.
  2. Secure the material to be cut firmly on the saw's base, making sure it won't move during the cutting process.
  3. Adjust the saw's cutting angle and depth to the desired specifications.
  4. Turn on the saw and allow the blade to reach full speed before bringing it down to the material to be cut.
  5. Lower the blade onto the material, keeping it steady and moving it along the cutting line.
  6. Be patient and avoid forcing the blade through the material, letting it cut through at its own pace.
  7. After the cut is complete, release the trigger to stop the blade, and wait until it comes to a complete stop before lifting it off the material.
  8. Remove the cut material from the saw's base and turn off the saw.

It's important to follow the manufacturer's instructions and safety guidelines for the specific saw you are using. Also, make sure to maintain the saw and its blade regularly to ensure safe and efficient use.

*Information shown may differ or change without warning*
