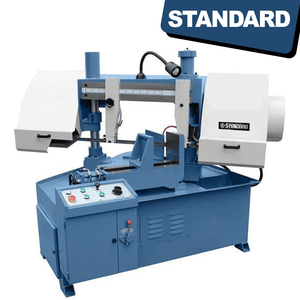

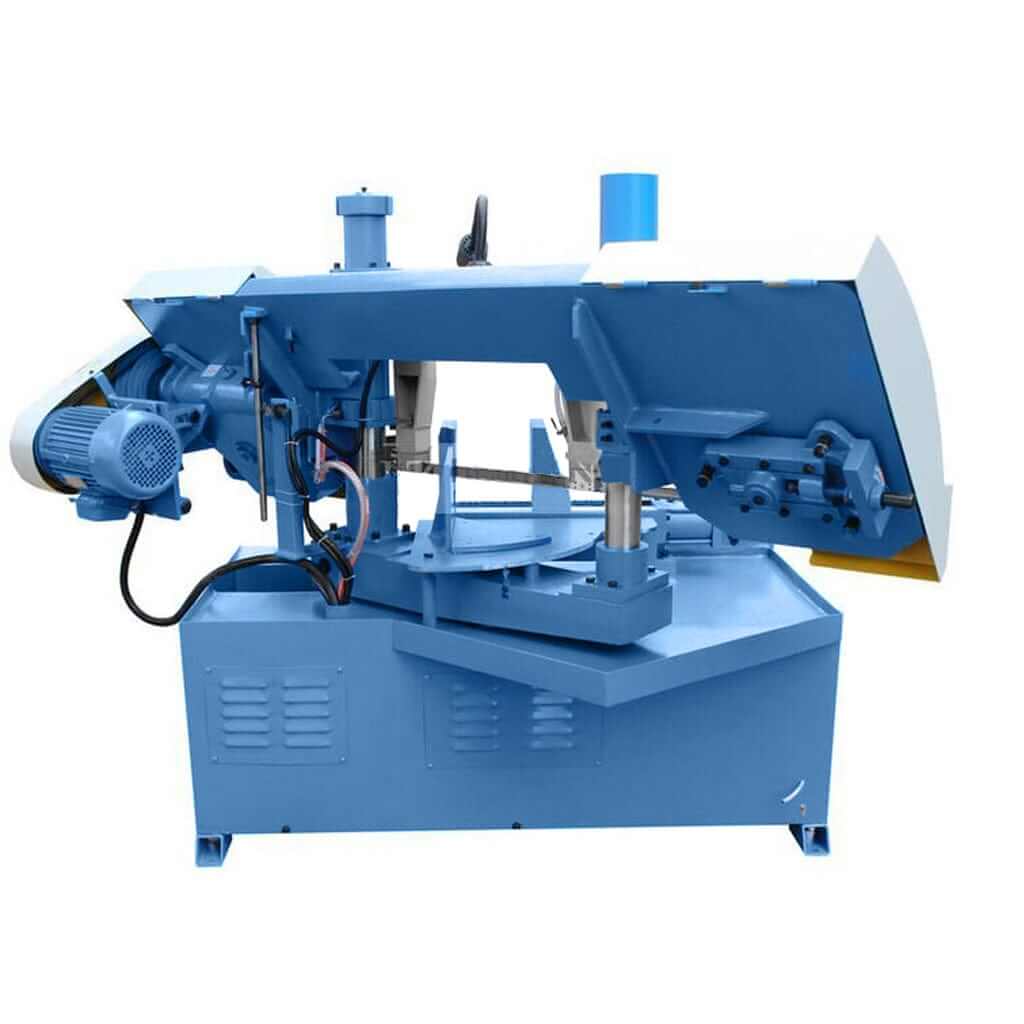

STANDARD BM-280 Semi-Auto Mitre Cutting Bandsaw - Column Type

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

Introducing the STANDARD BM-280 Semi-Auto Mitre Cutting Bandsaw - Column Type, an efficient and reliable solution designed to meet your precision cutting needs.

Crafted with top-notch engineering, this bandsaw exemplifies superior functionality and accuracy in miter cutting applications.

Engineered for versatility, the STANDARD BM-280 effortlessly tackles various materials, from metals to plastics, offering precise, clean, and smooth cuts. Its semi-automatic operation streamlines workflow, enhancing productivity without compromising on precision.

This column-type bandsaw boasts a robust build, ensuring stability and durability for prolonged use in industrial settings. Its ergonomic design prioritizes user convenience while maintaining safety standards, providing a comfortable and secure operating experience.

The STANDARD BM-280 Miter Cutting Bandsaw stands out for its:

  1. Precision Cutting: Achieve accurate miter cuts consistently across different materials, meeting high-quality standards.
  2. Semi-Automatic Functionality: Enhances efficiency by automating certain cutting processes while maintaining precision control.
  3. Durability and Stability: Constructed with sturdy materials, ensuring longevity and stability during operation.
  4. User-Friendly Design: Thoughtfully engineered for user comfort and safety, optimizing the operational experience.

Experience seamless operation and exceptional cutting performance with the STANDARD BM-280 Semi-Auto Mitre Cutting Bandsaw - Column Type. Elevate your workshop or industrial setup with this reliable and versatile tool, delivering precision and efficiency in every cut.

Invest in precision and productivity. Purchase the STANDARD BM-280 now for your miter band saw needs.

Main Features:

  • The band saw features an extremely rigid dual-column cast-iron construction.
  • Three saw blade speeds can be directly shifted via the main drive motor.
  • The saw frame feed is variable, allowing for precise control.
  • The sawing angle can be adjusted up to 45°.
  • After each cut, the saw frame automatically returns to the home position.
  • The machine is equipped with an extra rigid and adjustable saw blade guide.
  • Hydraulic clamping system ensures secure workpiece clamping.



Specifications
    • Maximum Cutting Capacity
      • Round - 280mm
      • Quadrate - 400×200mm
      • 45° - 220×200mm
    • Saw blade
      • Speed - 30/50/80
      • Size - 34×1.1×3860
      • Guides - Carbide and bearing blade guides
      • Cleaning -  Wire brush & flood coolant
      • Tension - Manual
    • Motor output
      • Blade - 3kW
      • Hydraulic - 0.75kw
      • Coolant - 0.06kw
    • Work feeding - Manual
    • Work Vice - Hydraulic
    • Machine Weight - 980kg
    • Packing Size(L×W×H) - 1950×1450×1400mm
      Standard Accessories
      • Blade cleaning brush.
      • Working light.
      • Manual work height control.
      • Out feed with auxiliary plate table.
      • One piece of bi-metal saw blade.
      • One set of tools with tool box.
      • Operation & parts manual.
      Optional Accessories
      • Roller table 2M.
      • Inverter.
      • Hydraulic blade tension.
      • Chip conveyor.
      Delivery

      Build on order only.
      Delivery is 8-12 Weeks from Deposit


      How to use a Semi-Auto Mitre Column Type Cutting Bandsaw

      1. Adjust the blade guide to match the material you will be cutting. Ensure that the blade is properly aligned.

      2. Set the cutting angle by rotating the head of the saw to the desired angle.

      3. Adjust the depth of the cut and the material stop according to the thickness of the material you will be cutting.

      4. Secure the material to the saw table using clamps.

      5. Turn on the saw and initiate the cutting process by engaging the blade.

      6. Observe the cutting process to ensure that the blade is cutting straight and not overheating.

      7. Once the cut is complete, turn off the saw and remove the material.

      8. Clean the saw and the work area to prevent any potential safety hazards.

      It's important to read and follow the manufacturer's instructions and safety guidelines to ensure that you're using the saw properly and safely. Additionally, it's important to wear appropriate safety equipment, including eye protection and gloves.
