---PROFESSIONAL GRADE---
*Mills are built on order, delivery is approx 9~14 weeks
Prices include Sea Freight to your nearest port*
*Excludes Local Taxes*

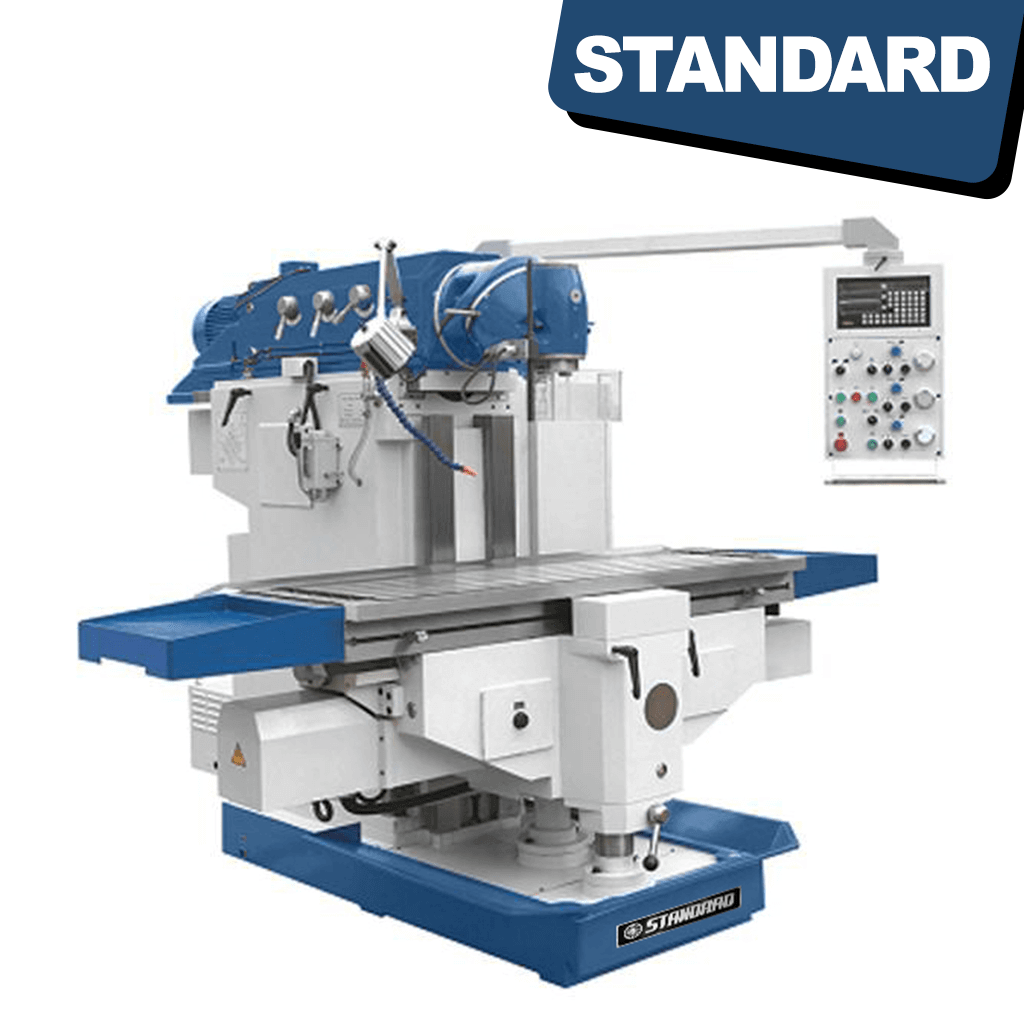

This is a newly developed Ram-type universal milling machine with digital display, however it is based on the traditional knee-type milling machine and has more advanced features. This machine can mill any angle surface through the front half-sphere with a swiveling milling head.
Featuring enlarged machining capacity:
The Standard UH-900 Ram Head type Universal Milling Machine is capable of producing plane and groove cuts, as well as machining plane and groove cuts in cavities of various workpieces. This versatile machine is perfect for metalworking projects, particularly for die and mold production.
| Description | Metric | Imperial |
| Table Size | 1235x460mm | 48.62 x 18.11 in |
| T-slots (No./width/pitch) | 5/18/80mm | 5/0.71/3.15 in |
| Table Travel | X-Axis - 900mm Y-Axis - 650mm Z-Axis - 450mm |
X-Axis - 35.43 in Y-Axis - 25.59 in Z-Axis - 17.72 in |
| Milling Head swivel | 360° | 360° |
| Table feed | X-Axis - 10-1000mm/min Y-Axis - 10-1000mm/min Z-Axis - 6-640mm/min |
X-Axis - 0.39-39.37 in/min Y-Axis - 0.39-39.37 in/min Z-Axis - 0.24-25.20 in/min |
| Spindle Speed | 30-2050rpm (27 speeds) | 30-2050rpm (27 speeds) |
| Table rapid speed | 2200/2200/1100 mm/min | 86.61/86.61/43.31 in/min |
| Spindle to Workspace | 58-508mm | 2.28-20.00 in |
| Spindle to Column | 20-670mm | 0.79-26.38 in |
| Table Load Capacity | 800kg | 1763.7lbs |
| Spindle taper | ISO40 | ISO40 |
| Main Motor | 5.5kW | 5.5kW |
| Feed AC servo motor | X/Y:15NM; Z: 18NM | X/Y:15NM; Z: 18NM |
| Dimensions | 2570x2035x1990mm | 101.18 x 80.12 x 78.35 in |
| Weight | 3600kg | 7936.64lbs |
Delivery is 8-12 Weeks from Deposit
Strictly built on demand.
A Ram Head type Universal Milling Machine is a versatile milling machine that can be used for a wide range of milling operations.
To use the machine, follow these steps:
Prepare the machine: Check the machine's manual and make sure that it is set up properly and all necessary tools are available. Ensure that the workpiece is securely clamped to the table.
Choose the right cutter: Select a cutter that is appropriate for the material you will be machining and the desired outcome.
Set the speed: Set the spindle speed to the recommended RPM for the cutter you have selected.
Adjust the depth of cut: Use the depth of cut adjustment to set the depth of the cutter into the workpiece.
Start the machine: Start the machine and let it reach full speed before engaging the cutter.
Engage the cutter: Slowly lower the cutter into the workpiece, making sure to maintain a steady pace.
Monitor the process: Observe the machining process carefully, and make any necessary adjustments to the speed or depth of cut.
Finish the cut: When the cut is complete, turn off the machine and remove the workpiece.
Note: Always wear proper personal protective equipment and follow all safety guidelines when using a milling machine.
*Information shown may differ or change without warning*
