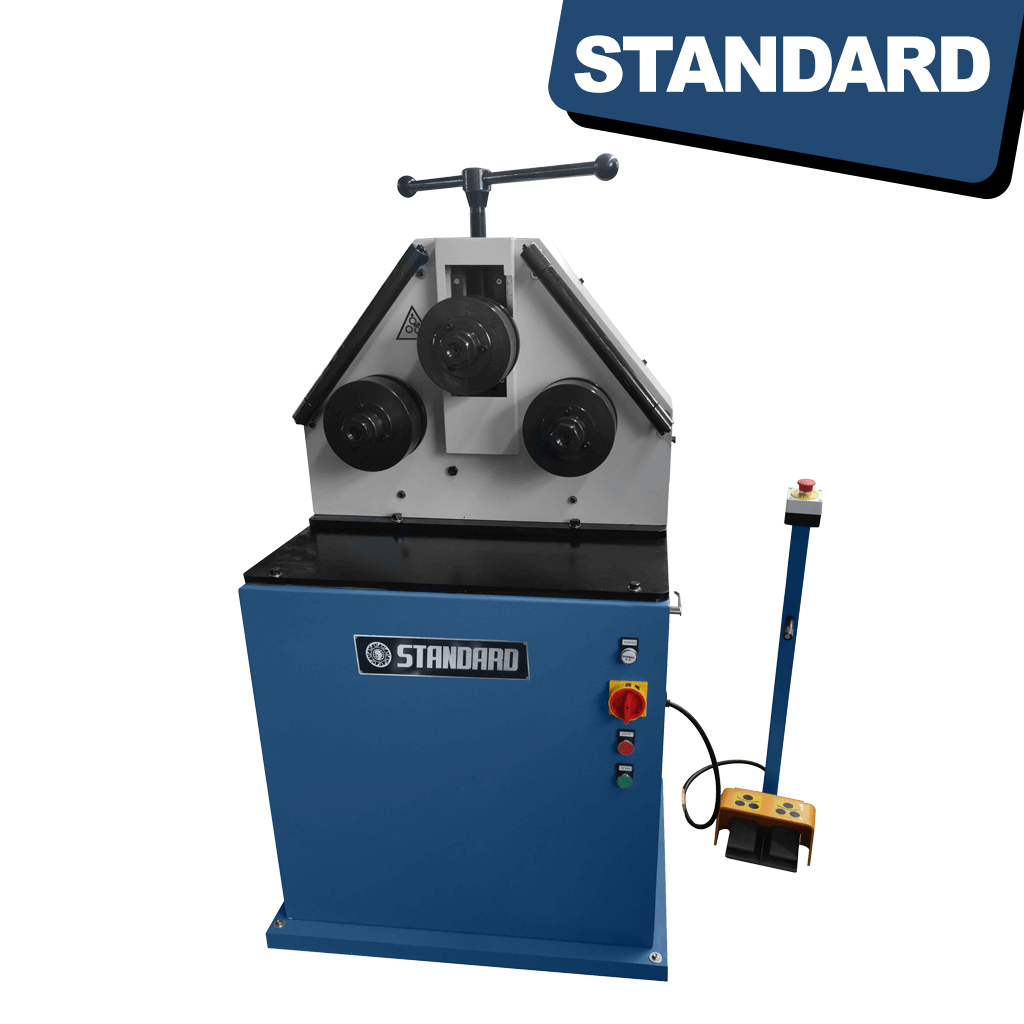

STANDARD SSR-50HV Manual Horizontal/Vertical Section Roller

--------------------

Machines are built on order, delivery is 9~14 weeks
Shipped Worldwide- Prices include freight to your nearest sea port*

*Excludes Local Taxes*

Description

Standard SSR-50HV Horizontal & Vertical Section Roller:

A horizontal section roller is a type of rolling machine that is designed to roll out flat, horizontal sections of metal or other materials. It typically consists of a series of rollers that are arranged in a horizontal configuration, with the material being passed through the rollers to achieve the desired level of flattening or shaping.

A vertical section roller, on the other hand, is a type of rolling machine that is designed to roll out vertical sections of metal or other materials. It typically consists of a series of rollers that are arranged in a vertical configuration, with the material being passed through the rollers to achieve the desired level of flattening or shaping.

Main Features:

  • The Round bending machine features an electric three-roller-wheel structure.
  • It has the advantage of a two-axis drive. The upper axis can be moved up and down to adjust the diameter of the processed work piece.
  • It can conduct round bending processing for plates, T-shaped materials and so on.
  • Round bending machine has a standard roller wheel, of which the front two types of roller wheel can be used both vertically and horizontally.
  • The reversible pedal switch facilitates the operation.
Specification
  • Diameter of roller - Ø5mm
  • Power - 2.2kw/3HP
  • Spindle speed - 13r/min
  • Size - 1500x950x1340mm
  • Gross Weight - 647kg
Capacity
  • Angle Iron Leg In - 30x30x4mm (Ø500mm), 50x50x5mm (Ø500mm)
  • Angle Iron Leg Out - 50x50x5mm (Ø500mm), 30x30x4mm (Ø500mm)
  • Solid Bar on Flat Side - 60x20mm (Ø800mm), 30x6mm (Ø1250mm)
  • Solid Bar on Edge - 50x10mm (Ø600mm), 20x6mm (Ø800mm)
  • Solid Round Bar - Ø30mm (Ø650mm), Ø10mm (Ø1100mm)
  • Square Tube - 50x50x2.5mm (Ø700mm), 30x30x2mm (Ø800mm)
  • Rectangle Tube on Flat Side - 50x25x2.5mm (Ø800mm), 40x20x2mm (Ø1000mm)
  • U-Channel Leg In - 60x40x6mm (Ø600mm), 30x15x4mm (Ø900mm)
  • U-Channel Leg Out - 60x40x6mm (Ø600m), 30x15x4mm (Ø900mm)
  • T-Channel Leg In - 50x50x6mm (Ø600mm), 30x30x3mm (Ø500mm)
  • T-Channel Leg Out - 50x50x6mm (Ø600mm), 30x30x3mm (Ø500mm)
Special Roller (Available on Request):
  • Round Tube - Ø30X2mm (Ø700mm), Ø35X2mm (Ø700mm), Ø40X2mm (Ø700mm), Ø45X2mm (Ø700mm), Ø50X2mm (Ø700mm), Ø55X2mm (Ø700mm), Ø60X2mm (Ø700mm), Ø65X2mm (Ø700mm), Ø70X2mm (Ø700mm)
Delivery

Delivery is 8-12 Weeks from Deposit

How to use a Manual Horizontal/Vertical Section Roller
  1. Read the manual and become familiar with all parts and controls of the roller.
  2. Assemble the roller according to the manufacturer's instructions.
  3. Place the roller on a flat, level surface.
  4. Adjust the roller to the desired position (horizontal or vertical).
  5. Secure the material to be rolled in place.
  6. Turn on the roller and apply gentle, even pressure to roll the material.
  7. Stop the roller and check the material for even rolling.
  8. Repeat the rolling process until desired results are achieved.
  9. Turn off the roller and disassemble it according to the manufacturer's instructions.
  10. Clean and store the roller properly after use.

*Information shown may differ or change without warning*
