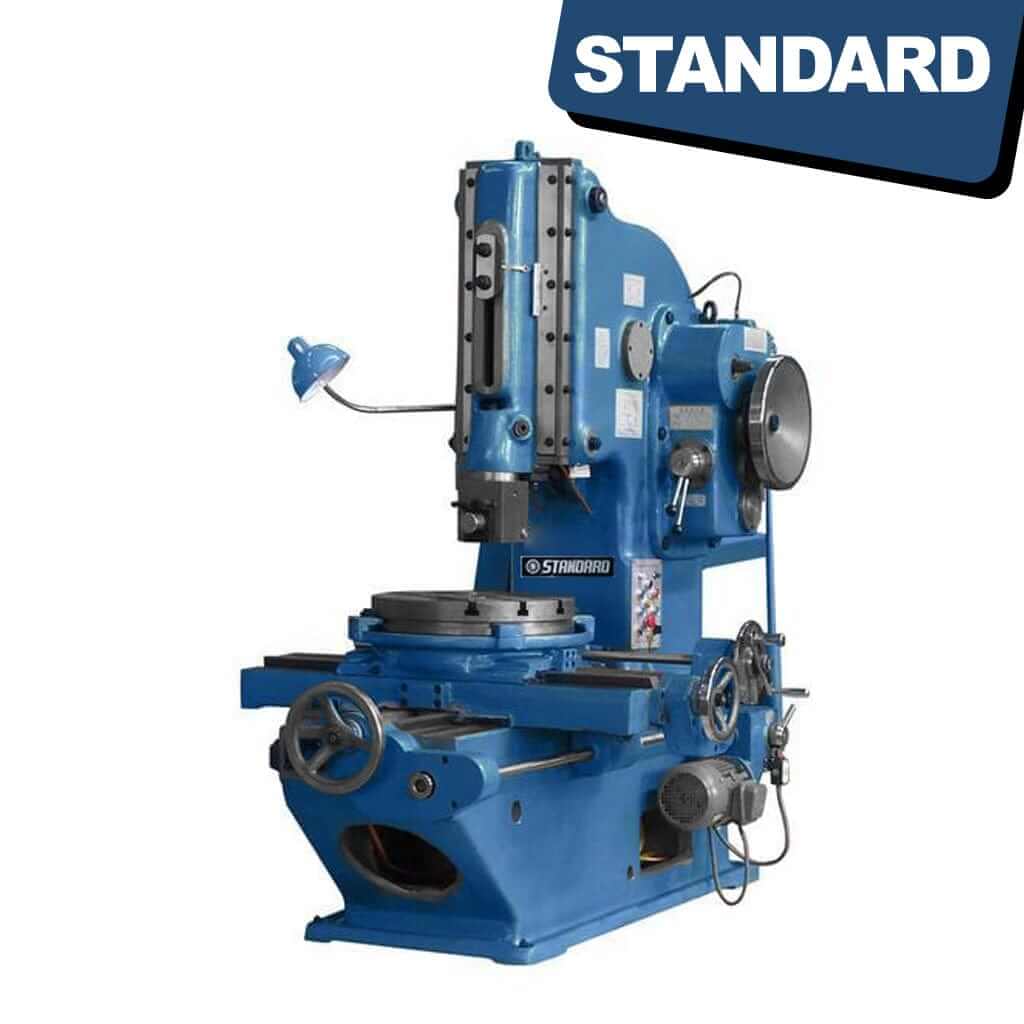

STANDARD SL-320 Automatic Slotting Machine

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

Standard SL-320 Automatic Slotting Machine:

An automatic slotting machine is a machine tool that is used to produce slots, or grooves, in a workpiece. It typically consists of a base, a table to hold the workpiece, and a slotting head that is mounted on a reciprocating ram. The slotting head contains a cutting tool, which is usually a rotary end mill, that is used to cut the slot into the workpiece. The machine is automatic because it is controlled by a computer numerical control (CNC) system, which allows the operator to input the desired dimensions and tolerances for the slot and to specify the cutting speed and feed rate. The CNC system also monitors the cutting process and makes adjustments as needed to ensure that the slot is produced to the required specifications.

Main Features:

  • The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining
  • Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
  • The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
  • Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
  • Use hydraulic feed the slotting machine, Is when the work is over  turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
Specifications
  • Max. stroke of RAM - 340mm = 13.39 inches
  • Ram maximum slotting length - 320mm = 12.6 inches
  • Ram motion frequency - 20.32.50.80 times/min
  • Ram tilt angle - 0-8°
  • Ram vertical adjustment distance - 315mm = 12.4 inches
  • Table Diameter - 630mm = 24.8 inches
  • Max. longitudinal moving distance of working table - 630mm = 24.8 inches
  • Max. transverse moving distance of working table - 560mm = 22.05 inches
  • Table maximum rotation angle - 360°
  • Vertical and horizontal table power feed range - 0.08-1.21mm =  0.00315-0.0476 inches
  • Table rotary feed range - 0.052-0.783mm = 0.00205-0.0308 inches
  • Motor power - 4Kw = 5.36 hp
  • Motor Speed - 960r/min
  • Machine Weight - 3000kg = 6614 lbs
  • Outline Dimension - 2261x1495x2245mm = 88.98x58.86x88.39 inches
Delivery

Delivery is 8-12 Weeks from Deposit


How to use an Automatic Slotting Machine

To use an automatic slotting machine, you will need to do the following:

  1. Install the workpiece on the table of the machine. This may involve securing it with clamps or other holding devices.

  2. Set up the machine by entering the desired dimensions and tolerances for the slot into the CNC system. You may also need to select the appropriate cutting tool and set the cutting speed and feed rate.

  3. Start the machine and initiate the cutting process. The slotting head will move along the desired path, cutting the slot into the workpiece as it goes.

  4. Monitor the cutting process to ensure that the slot is being produced according to the specified dimensions and tolerances. Make any necessary adjustments to the machine as needed.

  5. When the slot is complete, turn off the machine and remove the workpiece from the table.

It is important to follow proper safety procedures when using an automatic slotting machine, such as wearing appropriate personal protective equipment and following all machine-specific guidelines. You should also familiarize yourself with the machine's operating manual and any relevant industry standards before using it.
