STANDARD H4H-50 Hydraulic Hot Press - 50 ton

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

Product Introduction

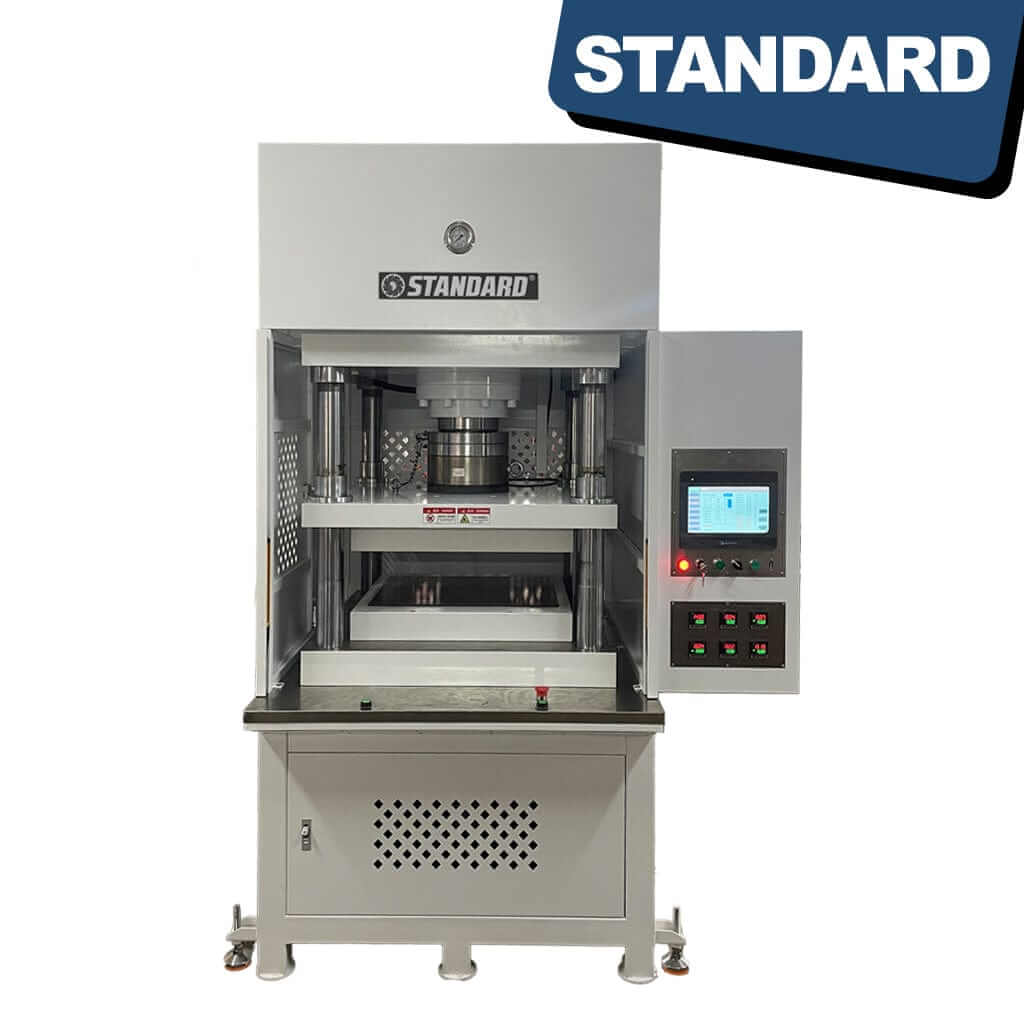

Introducing the STANDARD H4H-50 Hydraulic 4-Post Press with NC Control and Heated Table, a state-of-the-art hydraulic press designed to meet the demands of modern industries. Whether you're tackling heavy-duty projects or intricate operations, this press delivers unmatched precision, reliability, and efficiency. The H4H-50 is more than a machine—it's a game-changer for your workspace, combining cutting-edge technology with superior functionality.

Full Description

The STANDARD H4H-50 Hydraulic 4-Post Press combines innovative features with a user-friendly design, making it the ultimate choice for precision and reliability. Its intuitive touchscreen control simplifies operations, while the robust four-column structure ensures stability for both heavy-duty and delicate tasks.

With heated top and bottom templates featuring intelligent thermostats, the press delivers precise and consistent temperatures for superior results. The integrated hydraulic system, located beneath the machine, keeps your workspace clean and organized.

Optional casters and foot cups provide mobility, while precision guides on the columns ensure smooth and reliable performance. The advanced NC control system offers real-time data and customizable adjustments, enhancing accuracy and efficiency. The adjustable cylinder and precise positioning provide repeatability down to 0.01mm.

Optional features like stress monitoring, cylinder positioning with a digital scale, and customizable temperature control allow for added precision. Despite its power, the press operates quietly, with noise levels below 80 decibels, and its advanced heating technology ensures rapid and consistent heat distribution.

Versatile enough for both molding and punching tasks, the STANDARD H4H-50 is the ideal solution for professionals seeking efficiency, accuracy, and flexibility.

Specifications-H4H-50A

Specifications

Metric

Imperial

Model

H4H-50A

H4H-50A

Capacity

50 Ton (500 kN)

50 Ton

Hydraulic Cylinder Travel

300 mm

11.8 in

Heating Table Size

500 x 500 mm

19.7 x 19.7 in

Daylight

500 mm

19.7 in

Closed Height

200 mm

7.9 in

Motor Power

3 kW

4 HP

Voltage

3-phase (220V, 400V, 480V)

3-phase (220V, 400V, 480V)

Dimensions

1500 x 600 x 1700 mm

59.1 x 23.6 x 66.9 in

Weight

1400 kg

3086 lbs


Specifications-H4H-50B

Specifications

Metric

Imperial

Model

H4H-50B

H4H-50B

Capacity

50 Ton (500 kN)

50 Ton

Hydraulic Cylinder Travel

300 mm

11.8 in

Heating Table Size

750 x 750 mm

29.5 x 29.5 in

Daylight

500 mm

19.7 in

Closed Height

200 mm

7.9 in

Motor Power

3 kW

4 HP

Voltage

3-phase (220V, 400V, 480V)

3-phase (220V, 400V, 480V)

Dimensions

1600 x 850 x 1700 mm

63.0 x 33.5 x 66.9 in

Weight

1500 kg

3307 lbs

Delivery

Product is built on order so is eligible for customization

Delivery is 8-12 Weeks from Deposit

How to Use the STANDARD H4H-50 4-Post Hydraulic Hot Press

Safety and Setup
Wear safety gear like safety glasses and gloves, and familiarize yourself with the emergency shut-off procedure. Place the hot press on a stable, level surface with proper ventilation and plug it into a suitable power source as per the manufacturer's guidelines.

Power On and Control Panel
Turn on the press and check that the touchscreen controller is securely connected. The touchscreen displays the press's status and settings.

Heating and Pressure Settings
Set the desired temperature and pressure using the touchscreen by selecting the appropriate options and entering the required values.

Operation
Open the press, place your materials between the plates, and close the press carefully using the touchscreen controls.

Monitoring and Timing
Monitor temperature and pressure on the touchscreen to ensure proper operation. Set the pressing time on the touchscreen and let the press complete the cycle.

Cool Down and Removal
Wait for the press to cool and indicate it’s safe to open, then carefully unlock and remove the pressed materials using appropriate tools.

Shutdown and Maintenance
Turn off the press as per the manufacturer’s guidelines, clean its components, and ensure the touchscreen is debris-free. Regularly inspect and maintain the hydraulic system and other parts following the manual.

Safety and Troubleshooting
Always follow safety protocols, keep unauthorized personnel away, and consult the manual or contact support for troubleshooting. Read the user manual for model-specific instructions.
