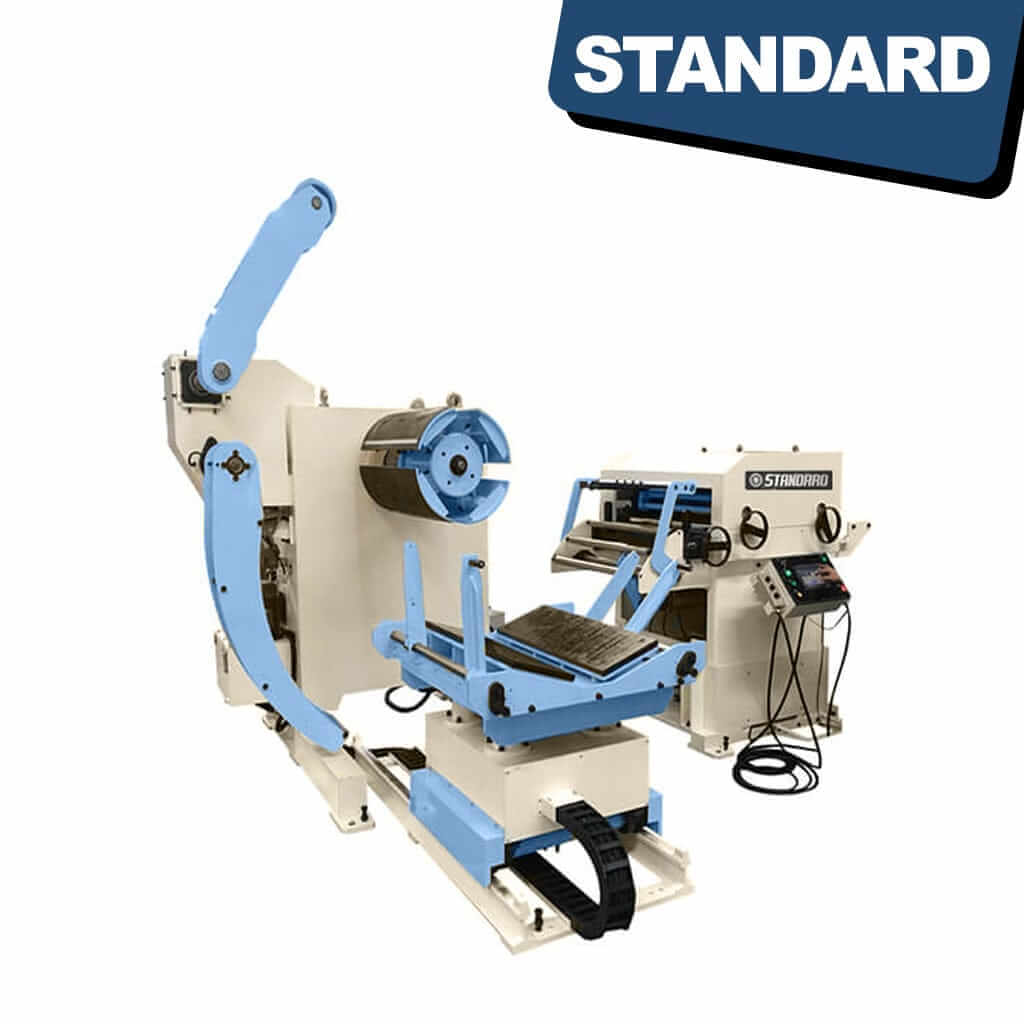

Standard GLK2-600 Decoiler Straightener Feeder:
A decoiler straightener feeder is a machine used in the manufacturing industry to process metal coils. It is a combination of three separate machines: a decoiler, straightener, and feeder.
The decoiler is the first machine in the process and is used to unwind the metal coil from its spool. The coil is placed on a spindle that rotates to release the metal as it is fed into the straightener.
The straightener is responsible for flattening and removing any kinks or bends in the metal. It consists of a set of rollers or press plates that apply pressure to the metal, effectively straightening it out.
The feeder is the final machine in the process and is used to accurately feed the metal into a stamping or forming machine. It uses rollers or gripper mechanisms to grip and advance the flattened and straightened metal to the next stage of production.
The three machines are typically combined into a single unit, with the decoiler at the top, followed by the straightener and feeder. The metal coil is fed through each machine in turn, with the straightened and flattened metal being advanced to the feeder, which delivers it to the next stage of production.
Decoiler straightener feeders are commonly used in the automotive, aerospace, and construction industries, where precise, high-speed metal processing is essential.
Main Features:
Due to the many options offered, these machines are strictly built on order. Feel free to customize and build your ideal machine.
Delivery 10-14 Weeks from Deposit
Using a decoiler straightener feeder involves several steps:
Prepare the machine: Make sure that the decoiler, straightener, and feeder are properly set up and aligned. Load the metal coil onto the decoiler spindle and secure it in place.
Adjust the straightener: Adjust the straightener rollers or press plates to the correct settings based on the thickness and type of metal being processed. This ensures that the metal will be properly straightened and flattened.
Turn on the machine: Power up the decoiler straightener feeder and adjust the speed and feed rate to the desired settings.
Feed the metal: Start the decoiler spindle to unwind the metal coil. As the metal feeds through the straightener, check that it is being properly flattened and straightened.
Start the feeder: Once the metal has been straightened and flattened, start the feeder to advance it to the next stage of production.
Monitor the process: Keep an eye on the metal as it is being processed and make adjustments to the machine settings as needed to ensure that the metal is being properly processed and fed.
Stop the machine: When the metal coil is fully unwound or the desired amount of metal has been processed, turn off the machine and remove the flattened metal from the feeder.
Overall, using a decoiler straightener feeder requires careful attention to detail and a good understanding of the machine's settings and capabilities to ensure that the metal is being properly processed and fed.
