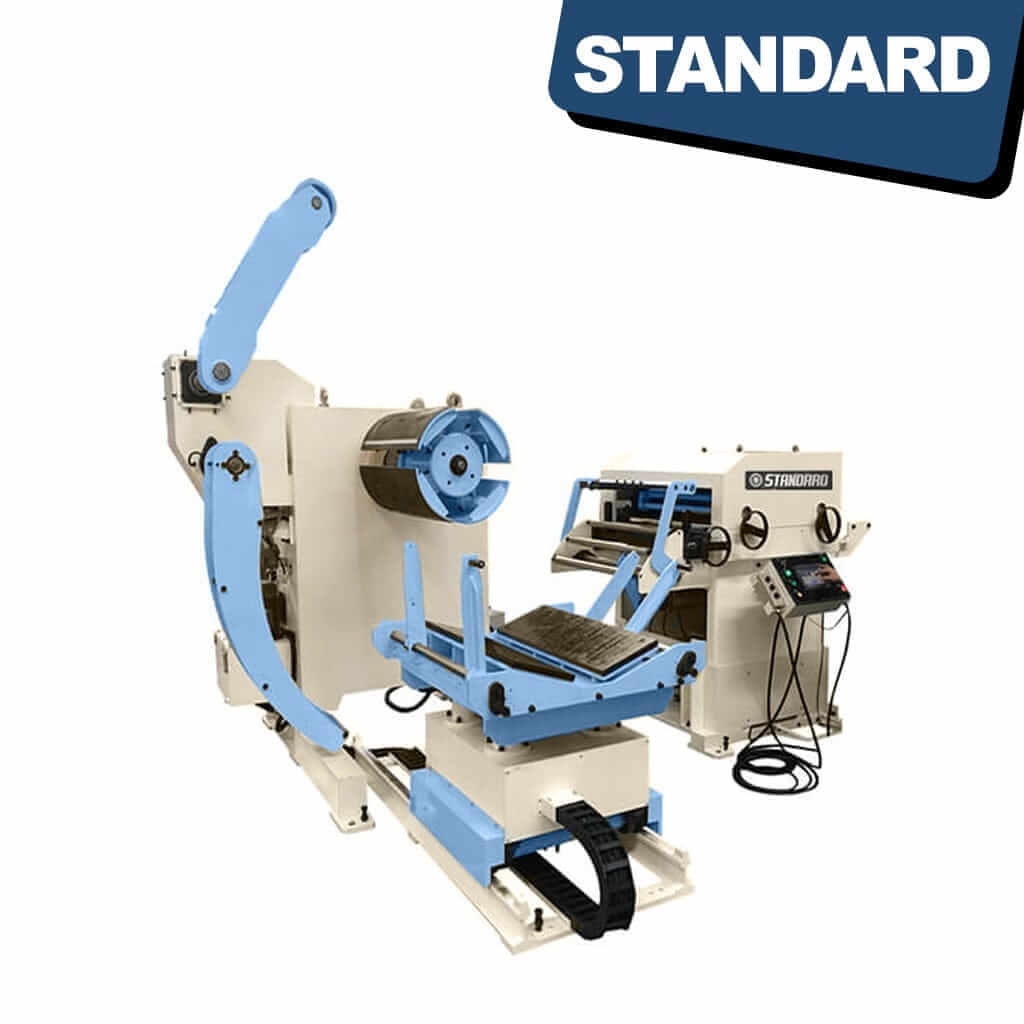

STANDARD GLK2-400 Decoiler Straightener Feeder

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

Introducing our STANDARD GLK2-400 Decoiler Straightener Feeder – the quintessential solution for seamless metal processing.

This 3-in-1 powerhouse combines the functions of decoiling, straightening, and feeding into a single, efficient machine, streamlining your workflow and maximizing productivity.

Crafted with precision engineering and quality materials, the GLK2-400 boasts exceptional durability and reliability, ensuring consistent performance even in the most demanding industrial environments. Its robust design enables it to effortlessly handle a wide range of coil materials and thicknesses, offering versatility and adaptability to diverse production needs.

Equipped with advanced features, including adjustable speed and precision straightening capabilities, this machine empowers operators to achieve precise results with minimal effort. Its user-friendly interface and intuitive controls make setup and operation a breeze, allowing operators to focus on delivering superior quality output efficiently.

Whether you're in automotive manufacturing, electronics, or any industry that requires precision metal processing, the STANDARD GLK2-400 Decoiler Straightener Feeder stands ready to elevate your production capabilities. Experience the convenience, reliability, and efficiency of our 3-in-1 solution – where performance meets perfection.

Main Features:

  • Workspace saving coil line
  • Precision straightening performance
  • Safety coil handling operation
  • Accuracy coil feeding
Specifications
  • Mandrel Expansion Range - Ø475 - 530mm = Ø18.701 - 20.866 inches
  • Material Thickness: 0.3 - 3.2 mm =  0.0118 - 0.1259 inches
  • Loading Capacity: 3 ton = 6614.88 lbs
  • Straightening Rollers: Ø48mm (11pcs) = Ø1.8898 inches
  • Feeding Rollers: Ø68mm (2pcs) = Ø2.6772 inches (2 pcs)
  • Coil Car (Option)
    • Wear-resisting loading surface
    • Safety arms to prevent narrow coil falling
    • Hydraulic cylinder drive the coil car lifting
    • Hydraulic motor drive the coil car movement
    • Limit switch and blocks to avoid coil car's offside
    • Remote manual button control and touch screen control
  • Decoiler
    • Hydraulic mandrel expansion
    • Variable uncoiling speed control
    • Pneumatic coil hand-down arm for springy materials
    • 4pc of "A" type frames locate the coil and avoid coil shuffling
    • Photoelectric loop sensor
  • Straightener-Feeder
    • 11pcs high-quality straightener rollers
    • NSK precision gear driving
    • Bottom gear drive roller transmission
    • Worm gear roller adjustment for precision straightening performance
    • Pneumatic pilot release ensures an accuracy feeding
    • Motorized pass line height adjustment for die change
    • Adjustable support bracket for smooth feeding
  • Control System
    • Servo motor drive system
    • Self-diagnosis and alarm function
    • Material end detection
    • Variety electric control system for option
    • World-leading brands electronics
  • Advanced Options
    • Customized decoiler expansion range
    • Motorized coil guide adjustment
    • Protective plastic film rewinder
    • Coil threading support swing arm
    • Rubber upper feeding pinch roller
    • Motorized straightener value adjustment
    • Openable straightener upper rollers
    • Double side decoiler straightener feeder machine



Delivery

    Due to the many options offered, these machines are strictly built on order. Feel free to customize and build your ideal machine.

    Delivery 10-14 Weeks from Deposit


    How to use a Decoiler Straightener Feeder

    1. Prepare the machine: Make sure that the decoiler, straightener, and feeder are properly set up and aligned. Load the metal coil onto the decoiler spindle and secure it in place.

    2. Adjust the straightener: Adjust the straightener rollers or press plates to the correct settings based on the thickness and type of metal being processed. This ensures that the metal will be properly straightened and flattened.

    3. Turn on the machine: Power up the decoiler straightener feeder and adjust the speed and feed rate to the desired settings.

    4. Feed the metal: Start the decoiler spindle to unwind the metal coil. As the metal feeds through the straightener, check that it is being properly flattened and straightened.

    5. Start the feeder: Once the metal has been straightened and flattened, start the feeder to advance it to the next stage of production.

    6. Monitor the process: Keep an eye on the metal as it is being processed and make adjustments to the machine settings as needed to ensure that the metal is being properly processed and fed.

    7. Stop the machine: When the metal coil is fully unwound or the desired amount of metal has been processed, turn off the machine and remove the flattened metal from the feeder.

    Overall, using a decoiler straightener feeder requires careful attention to detail and a good understanding of the machine's settings and capabilities to ensure that the metal is being properly processed and fed.

    Description

    Introducing our STANDARD GLK2-400 Decoiler Straightener Feeder – the quintessential solution for seamless metal processing.

    This 3-in-1 powerhouse combines the functions of decoiling, straightening, and feeding into a single, efficient machine, streamlining your workflow and maximizing productivity.

    Crafted with precision engineering and quality materials, the GLK2-400 boasts exceptional durability and reliability, ensuring consistent performance even in the most demanding industrial environments. Its robust design enables it to effortlessly handle a wide range of coil materials and thicknesses, offering versatility and adaptability to diverse production needs.

    Equipped with advanced features, including adjustable speed and precision straightening capabilities, this machine empowers operators to achieve precise results with minimal effort. Its user-friendly interface and intuitive controls make setup and operation a breeze, allowing operators to focus on delivering superior quality output efficiently.

    Whether you're in automotive manufacturing, electronics, or any industry that requires precision metal processing, the STANDARD GLK2-400 Decoiler Straightener Feeder stands ready to elevate your production capabilities. Experience the convenience, reliability, and efficiency of our 3-in-1 solution – where performance meets perfection.

    Main Features:

    • Workspace saving coil line
    • Precision straightening performance
    • Safety coil handling operation
    • Accuracy coil feeding
    Specifications
    • Mandrel Expansion Range - Ø475 - 530mm = Ø18.701 - 20.866 inches
    • Material Thickness: 0.3 - 3.2 mm =  0.0118 - 0.1259 inches
    • Loading Capacity: 3 ton = 6614.88 lbs
    • Straightening Rollers: Ø48mm (11pcs) = Ø1.8898 inches
    • Feeding Rollers: Ø68mm (2pcs) = Ø2.6772 inches (2 pcs)
    • Coil Car (Option)
      • Wear-resisting loading surface
      • Safety arms to prevent narrow coil falling
      • Hydraulic cylinder drive the coil car lifting
      • Hydraulic motor drive the coil car movement
      • Limit switch and blocks to avoid coil car's offside
      • Remote manual button control and touch screen control
    • Decoiler
      • Hydraulic mandrel expansion
      • Variable uncoiling speed control
      • Pneumatic coil hand-down arm for springy materials
      • 4pc of "A" type frames locate the coil and avoid coil shuffling
      • Photoelectric loop sensor
    • Straightener-Feeder
      • 11pcs high-quality straightener rollers
      • NSK precision gear driving
      • Bottom gear drive roller transmission
      • Worm gear roller adjustment for precision straightening performance
      • Pneumatic pilot release ensures an accuracy feeding
      • Motorized pass line height adjustment for die change
      • Adjustable support bracket for smooth feeding
    • Control System
      • Servo motor drive system
      • Self-diagnosis and alarm function
      • Material end detection
      • Variety electric control system for option
      • World-leading brands electronics
    • Advanced Options
      • Customized decoiler expansion range
      • Motorized coil guide adjustment
      • Protective plastic film rewinder
      • Coil threading support swing arm
      • Rubber upper feeding pinch roller
      • Motorized straightener value adjustment
      • Openable straightener upper rollers
      • Double side decoiler straightener feeder machine



    Delivery

      Due to the many options offered, these machines are strictly built on order. Feel free to customize and build your ideal machine.

      Delivery 10-14 Weeks from Deposit

      How to use a Decoiler Straightener Feeder

      1. Prepare the machine: Make sure that the decoiler, straightener, and feeder are properly set up and aligned. Load the metal coil onto the decoiler spindle and secure it in place.

      2. Adjust the straightener: Adjust the straightener rollers or press plates to the correct settings based on the thickness and type of metal being processed. This ensures that the metal will be properly straightened and flattened.

      3. Turn on the machine: Power up the decoiler straightener feeder and adjust the speed and feed rate to the desired settings.

      4. Feed the metal: Start the decoiler spindle to unwind the metal coil. As the metal feeds through the straightener, check that it is being properly flattened and straightened.

      5. Start the feeder: Once the metal has been straightened and flattened, start the feeder to advance it to the next stage of production.

      6. Monitor the process: Keep an eye on the metal as it is being processed and make adjustments to the machine settings as needed to ensure that the metal is being properly processed and fed.

      7. Stop the machine: When the metal coil is fully unwound or the desired amount of metal has been processed, turn off the machine and remove the flattened metal from the feeder.

      Overall, using a decoiler straightener feeder requires careful attention to detail and a good understanding of the machine's settings and capabilities to ensure that the metal is being properly processed and fed.

      *Information shown may differ or change without warning*
