STANDARD ETB-800x1500 Flat Bed CNC Lathe - 3-speed headstock

Description

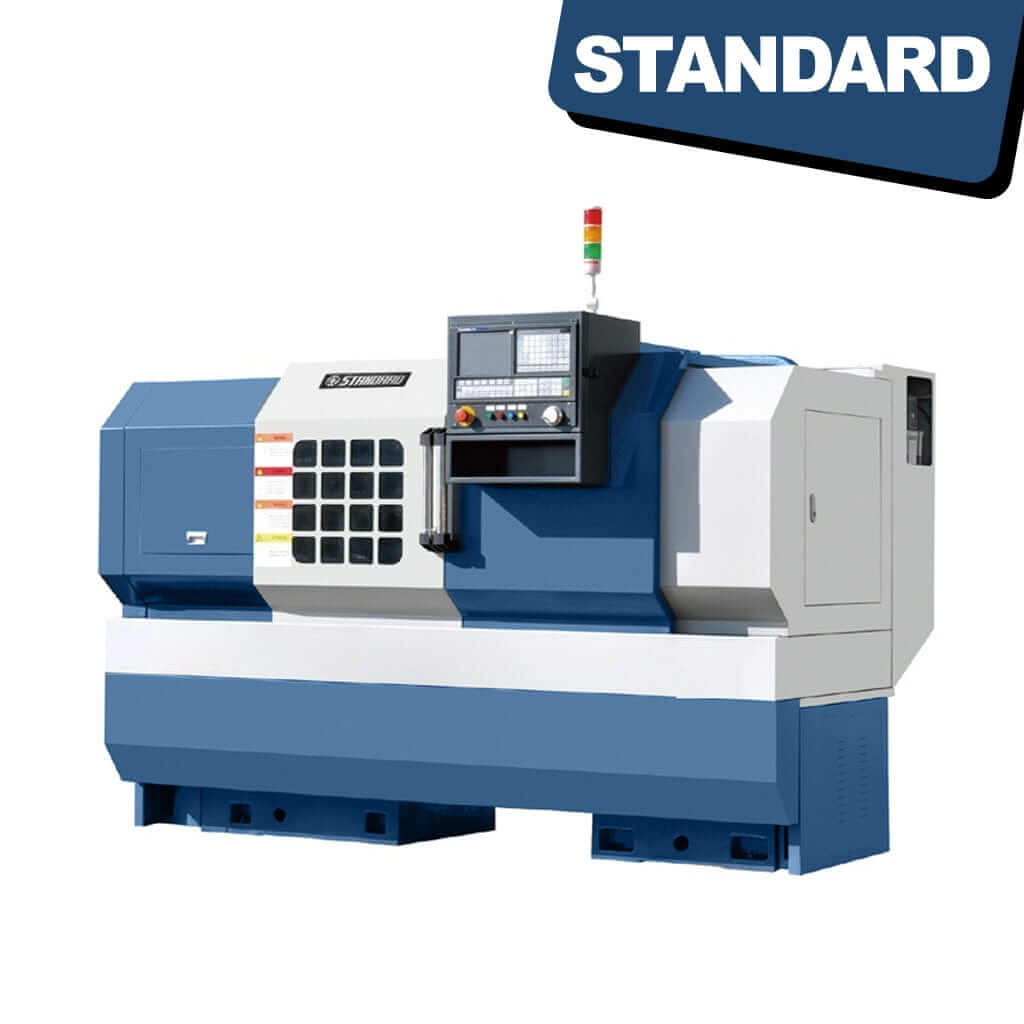

Standard ETB-800x1500 Flat Bed CNC Lathe - Direct drive spindle:

A Flat Bed CNC Lathe with Direct Drive Spindle is a type of computer numerical control (CNC) lathe that features a flat bed design and a direct drive spindle. The flat bed design allows for a larger work envelope and increased rigidity, while the direct drive spindle provides higher accuracy and faster cutting speeds. The direct drive spindle is directly connected to the motor which eliminates the need for gears or belts, thus reducing the maintenance requirements. The CNC aspect of the machine allows for precise and automated control of the cutting and shaping process, making it a versatile tool for a wide range of manufacturing applications.

Main Features:

• Braced machine bed made of grey cast iron
• Elaborate spindle bearing
• Bed guideways inductively hardened
• Dovetail slot lathe carriage inductively hardened

Specifications

• Max. Swing over bed - Ø800mm
• Max. Swing cross slide - Ø540mm
• Max. cutting length - 1500mm
• Spindle nose - A2-8
• Spindle bore - Ø86mm
• Taper of spindle bore - 1:20
• Chuck - 254mm
• Range of spindle speed - 30-100rpm
• Travels
• X-Axis travel - 450mm
• Z-Axis travel - 1500mm
• Hydraulic turret - 4 (Option: 6 or 8)
• Max. section of tool - 32x32mm
• Travel of tailstock sleeve - 305mm
• Diameter/ Taper of tailstock sleeve - Ø102mm/MT5
• Main motor power - 11kW
• Feed speeds
• X-Rapid speed - 10Nm
• Z-Rapid speed - 15Nm
• Coolant pump power - 250W
• Bed width - 460mm
• Machine dimensions - 3900x1600x1830mm
• Weight - 4600kg

Standard Accessories

• Wrenches
• Reduction sleeve
• Alloy center
• Three-jaw Scroll chuck
• Frequency conversion main motor

• Four position electric turret
• Auto lubrication coolant system

Optional Equipment

• AC servo motor
• Pneumatic or hydraulic chuck
• Horizontal six or eight-station
• Tool post

Delivery

Due to the many options offered, these machines are strictly built on order. Feel free to customize and build your ideal machine.

Delivery 10-14 Weeks from Deposit

How to use a Flat Bed CNC Lathe with Direct drive spindle

Using a Flat Bed CNC Lathe with Direct Drive Spindle typically involves the following steps:

1. Program creation: Create a CNC program using specialized software, which will contain instructions for the machine to follow during the cutting and shaping process. The program can be created using CAD/CAM software or manually inputted using G-code.

2. Workpiece preparation: Secure the workpiece to the lathe bed using clamps or a chuck. Make sure the workpiece is properly aligned and centered on the spindle.

3. Tool selection: Select and install the appropriate cutting tool for the job. This may include turning, boring, or drilling tools.

4. Machine setup: Configure the machine settings according to the requirements of the job. This may include setting the spindle speed, feed rate, and cutting depth.

5. Machine operation: Start the machine and allow it to run through the program. Monitor the machine during operation and make any necessary adjustments as needed.

6. Inspection: Once the machining is complete, inspect the workpiece to ensure it meets the desired specifications.

It is important to follow safety guidelines, such as wearing appropriate personal protective equipment and keeping hands and loose clothing away from the cutting area while the machine is in operation.

It is also important to be familiar with the machine's manual and understand its functions and safety protocols before using it.
