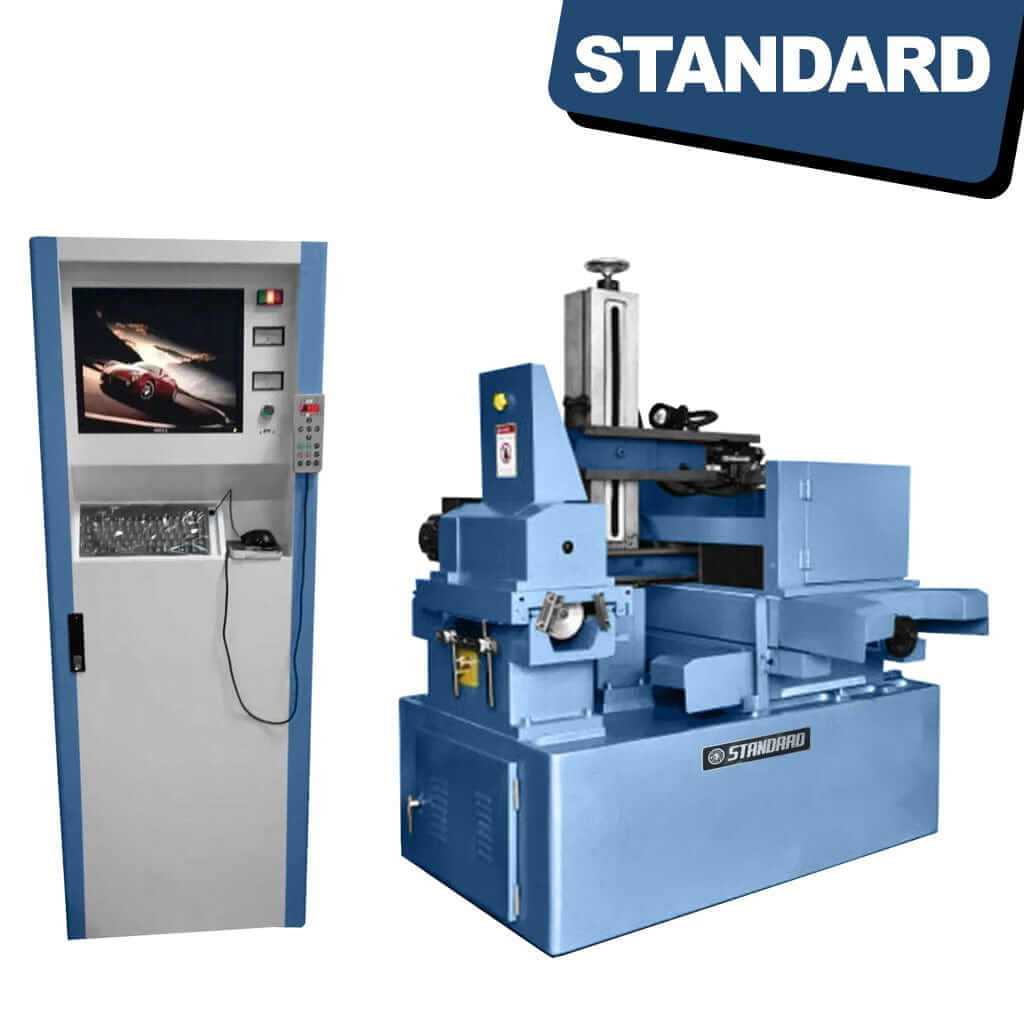

STANDARD EDW-630x800 Precision Wire Cut EDM

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

Introducing the STANDARD EDW-630x800 Precision Wire Cut EDM – Your Ultimate High-Speed Wire Cutting Machine!

Are you in the market for a cutting-edge solution to elevate your precision machining operations? Look no further! Our STANDARD EDW-630x800 Precision Wire Cut EDM is the answer to your demands for high-speed wire cutting excellence.

Key Attributes:

  1. Remarkable Precision: The STANDARD EDW-630x800 is engineered with meticulous precision in mind. Its advanced technology ensures the highest level of accuracy, making it an ideal choice for intricate and complex cutting tasks.

  2. High-Speed Performance: When time is of the essence, our Wire Cut EDM machine steps up to the challenge. It's optimized for high-speed wire cutting, allowing you to complete your projects in record time.

  3. Versatility: Whether you're working with metals, alloys, or exotic materials, this machine adapts to your needs effortlessly. Its versatility sets it apart, ensuring it remains a valuable asset across various industries.

  4. Quality Construction: Crafted with durability in mind, the STANDARD EDW-630x800 is built to withstand the rigors of industrial use. This machine is a reliable workhorse that guarantees consistent results.

  5. User-Friendly Interface: Our wire cutting machine features an intuitive interface, enabling easy operation and quick setup. Even if you're new to wire EDM, you'll be up and running in no time.

  6. Energy Efficiency: We've designed the STANDARD EDW-630x800 to be eco-conscious. Its energy-efficient design ensures minimal environmental impact while saving you on operational costs.

  7. Unrivaled Support: When you choose our wire cut EDM machine, you're not just getting a top-tier product but also exceptional customer support. Our team is here to assist you every step of the way.

If you're searching for a high-speed wire cutting machine for sale, look no further. The STANDARD EDW-630x800 Precision Wire Cut EDM offers a perfect blend of precision, speed, and versatility. Whether you're in the aerospace, automotive, or manufacturing sector, this machine will take your production to the next level.

Don't miss the opportunity to elevate your machining capabilities with this outstanding wire cutting solution. Purchase the STANDARD EDW-630x800 Precision Wire Cut EDM today, and experience the pinnacle of high-speed wire cutting technology.

Main Features:

  • Featuring a cutting-edge CNC controller and a streamlined, non-obstructive design, this model stands out from the rest.
  • High-precision transducer for reliable electrical discharge. Easily operated with a controller.
  • Central Lubrication and Automatic Wire Tension systems included.
  • Cutting thickness of up to 1000 mm is supported.
  • The AutoCut software enables the utilization of AutoCAD for programming without any manual manipulation.
  • Cutting taper angle from -15° to +60°.
  • Digital weighing technology and powerful water pump delivery ensure accurate results and reliable performance.
  • 15" LCD display, Windows XP-based industrial mainboard, and solid-state disk.
  • Options for multi-cut and medium-speed cutting functions.
        Machine Specifications - Metric Measurements
        • Travel of X,Y,Z Axis - 630x800x600mm
        • Table Size - 750x1150mm
        • Cut taper/thickness - 6°/80mm
        • Cut accuracy - 0.015mm
        • Max cut speed - 180mm²/min
        • Roughness accuracy - 1.2-2.5um
        • Wire diameter - 0.13-0.2mm (normally 0.18)
        • Maximum electrical current - 10A
        • Main Power - 2.6kW
        • Voltage - 220/380/415V , 50/60Hz
        • Max load of table - 1200kg
        • Weight of machine - 3000kg
        • Machine Dimensions - 1950x1550x2050mm
        Machine Specifications - Imperial Measurements
        • Travel of X,Y,Z Axis - 24.80x31.50x23.62 inches
        • Table Size - 29.53x45.28 inches
        • Cut taper/thickness - 6°/3.15 inches
        • Cut accuracy - 0.00059 inches
        • Max cut speed - 7.09 inches²/min
        • Roughness accuracy - 0.000047-0.000098 inches
        • Wire diameter - 0.0051-0.0079 inches (normally 0.0071)
        • Maximum electrical current - 10A
        • Main Power - 2.6kW
        • Voltage - 220/380/415V , 50/60Hz
        • Max load of table - 2645.55 lbs
        • Weight of machine - 6613.87 lbs
        • Machine Dimensions - 76.77x61.02x80.71 inches
        Control Specifications
        • Controller Model - Vertical Cabinet
        • CNC System - AutoCut/ X8
        • Program software  - AutoCad
        • Processing basic - Windows XP/Windows 7
        • Handle controller - Yes
        • Single/Multi Cut - Optional
        • Transducer Control - Yes
        • Maximum Processing Current - 10A
        Delivery
        Machines are strictly built on order. (Build-on-Demand).
        Delivery is 9-14 Weeks from Deposit.

        How to use a Precision Wire Cut EDM

        Using a Precision Wire Cut EDM (Electrical Discharge Machining) with Servo Control involves a precise and controlled process to cut intricate shapes and contours in various materials, especially conductive materials like metal. Servo control allows for accurate and repeatable movements of the wire electrode. Below, I'll provide a step-by-step guide on how to use a Precision Wire Cut EDM with Servo Control:

        Note: Before starting, ensure that you have received proper training and are familiar with the safety procedures for operating EDM machines.

        Step 1: Setup and Preparation

        1.1. Inspect the EDM machine to ensure it's in good working condition and properly maintained.

        1.2. Securely mount the workpiece on the machine's worktable or platform. Ensure that it is stable and properly aligned with the cutting path.

        1.3. Load the appropriate wire electrode into the machine's wire feed system and secure it in place.

        1.4. Fill the machine's dielectric tank with the specified dielectric fluid. The fluid serves as a medium for electrical discharge and helps flush away debris.

        Step 2: Programming

        2.1. Use CAD/CAM software to design or import the desired geometry for your workpiece. The software generates a toolpath that the EDM machine will follow.

        2.2. Transfer the program to the machine's control panel or computer interface. Ensure that the machine's settings match the program requirements, including wire speed, power settings, and servo control parameters.

        Step 3: Machine Operation

        3.1. Turn on the EDM machine and allow it to go through its initialization process.

        3.2. Set the appropriate parameters for the material you are cutting, such as wire tension, flushing rate, and power settings. These parameters can vary depending on the material's type and thickness.

        3.3. Use the machine's control panel or computer interface to load the program and initiate the cutting process.

        3.4. The machine will start to move the wire electrode along the programmed toolpath, making precise and controlled cuts. The servo control system ensures that the wire follows the path accurately.

        3.5. Monitor the cutting process for any signs of deviation or issues. Make adjustments as necessary to maintain the desired accuracy and quality.

        Step 4: Post-Processing

        4.1. Once the cutting process is complete, turn off the machine.

        4.2. Carefully remove the workpiece from the machine's worktable.

        4.3. Inspect the cut for accuracy and quality. Make any necessary finishing touches or secondary operations if required.

        Step 5: Maintenance and Cleanup

        5.1. Properly dispose of any waste material and used dielectric fluid in accordance with environmental regulations.

        5.2. Clean and maintain the EDM machine, including the wire feed system, electrodes, and dielectric tank, to ensure its longevity and optimal performance.

        Using a Precision Wire Cut EDM with Servo Control requires precision and attention to detail throughout the process. Regular maintenance and adherence to safety procedures are essential to ensure safe and efficient operation.
