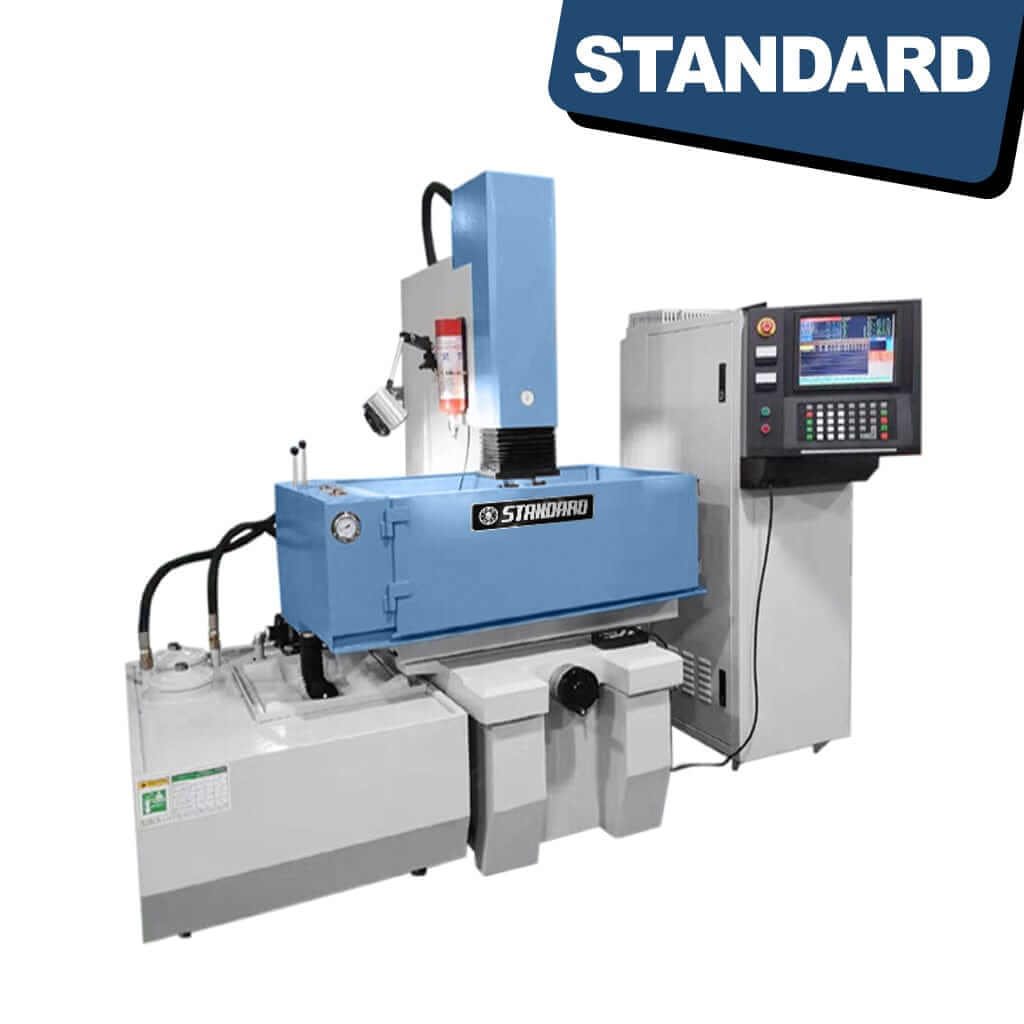

STANDARD EDS-500x400 CNC Spark eroder

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

          Introducing the STANDARD EDS-500x400 CNC Spark Eroder – a cutting-edge solution for precision machining and metal shaping.

          Our CNC Spark Eroder is engineered to redefine your manufacturing processes, combining advanced technology with reliability to meet the demands of modern industrial applications.

          Key Features:

          1. Precision Redefined: The EDS-500x400 ensures unparalleled precision with its CNC capabilities, allowing for intricate and complex machining tasks with utmost accuracy.

          2. Efficient Spark Erosion Technology: Equipped with state-of-the-art spark erosion technology, this machine excels in the removal of material from electrically conductive workpieces, achieving fine finishes and intricate geometries.

          3. Robust Construction: Crafted with durability in mind, the EDS-500x400 boasts a robust build, ensuring longevity and stability in your machining operations.

          4. User-Friendly Interface: The machine comes with an intuitive user interface, making it accessible for both seasoned professionals and those new to CNC machining. Streamlined controls facilitate easy programming and operation.

          5. Versatile Applications: From mold making to tool and die production, the EDS-500x400 adapts seamlessly to diverse manufacturing needs, offering versatility that enhances your workshop's capabilities.

          6. Cost-Efficiency: Our CNC Spark Eroder optimizes resources and reduces material wastage, resulting in cost-effective manufacturing processes that contribute to your bottom line.

          7. Precision at Scale: Whether you're working on a single prototype or large-scale production, this machine maintains precision and consistency across every task, ensuring high-quality outputs every time.

          Invest in the STANDARD EDS-500x400 CNC Spark Eroder to elevate your machining capabilities and stay ahead in today's competitive industrial landscape. For those seeking a CNC spark erosion machine at a competitive price, our product delivers unbeatable value without compromising on performance. Contact us today to request a quote and take the first step towards precision manufacturing excellence.

          Specifications - Metric Measurements
          • Worktable Size - 830x450mm
          • X-Y Stroke - 500x400mm
          • Z Axis Stroke - 250mm
          • Spindle head axis - 300mm
          • Distance from electrode head to worktable - 290-800um
          • Working tank inner size - 1280x730x450mm
          • Maximum Electrode weight - 150kgs
          • Workable loading - 1500kgs
          • Machine Weight - 2500kgs
          • Machine Overall size - 1800x1370x2400mm
          Specifications - Imperial Measurements
          • Worktable Size - 32.7 x 17.7 inches
          • X-Y Stroke - 19.7 x 15.7 inches
          • Z Axis Stroke - 9.8 inches
          • Spindle head axis - 11.8 inches
          • Distance from electrode head to worktable - 0.0114-0.0315 inches
          • Working tank inner size - 50.4 x 28.7 x 17.7 inches
          • Maximum Electrode weight - 330.7 lbs
          • Workable loading - 3306.9 lbs
          • Machine Weight - 5511.6 lbs
          • Machine Overall size - 70.9 x 53.9 x 94.5 inches
            Control Specifications
            • Processing current -30/50/75/100A
            • Positioning accuracy - 0.005mm
            • Repositioning accuracy - 0.003mm
            • Maximum Working speed - 550/750/1050mm3/min
            • Max. Roughness - Ra:0.2um
            • Max. electrode consumption - <0.2%
            • Controller Overall Size - 750x650x1750mm
            • Controller Weight - 200kgs
            Delivery
            Machines are strictly built on order. (Build-on-Demand).
            Delivery is 9-14 Weeks from Deposit.

            How to use a CNC Spark Eroder

            A CNC Spark Eroder, also known as an Electrical Discharge Machine (EDM), is a precision machining tool used for shaping, cutting, and drilling hard materials, especially metals. Here's a straightforward guide on how to use it:

            1. Safety First: Before you begin, ensure you have the necessary personal protective equipment (PPE), including safety glasses, gloves, and appropriate clothing. Make sure the CNC Spark Eroder is properly grounded and follow all safety guidelines provided by the manufacturer.

            2. Machine Setup: Power on the CNC Spark Eroder and ensure all components are functioning correctly. Load the required tooling, typically an electrode made of copper or graphite, into the machine's tool holder. Secure the workpiece firmly to the machine's worktable using clamps or a vise.

            3. Material Selection: Choose the material you want to shape or cut, ensuring it is compatible with EDM processes. Metals like steel, aluminum, and titanium are commonly processed with EDM.

            4. Program Setup: Create or load a Computer-Aided Design (CAD) file of the part you want to produce. Use CNC software to generate a toolpath program that specifies the tool's movement, electrode offset, and machining parameters.

            5. Set Machining Parameters: Configure settings such as the spark gap distance, pulse duration, and current intensity based on your material and desired results. Consult the machine's manual for recommended settings.

            6. Tool Alignment: Position the CNC Spark Eroder's electrode close to the workpiece without touching it. Ensure proper alignment and clearance.

            7. Start the Machining Process: Initiate the CNC program, which will control the electrode's movement and EDM process. The machine will begin to erode the workpiece by creating sparks (electrical discharges) between the electrode and the material, slowly removing material in the desired shape.

            8. Monitor and Adjust: Continuously monitor the machining process for any irregularities or issues. Make adjustments to the machining parameters if necessary to achieve the desired finish or accuracy.

            9. Post-Machining Inspection: Once the CNC Spark Eroder completes the machining process, carefully remove the finished part from the machine. Inspect the part for accuracy and quality. You may need to perform additional finishing operations if required.

            10. Shutdown and Maintenance: Turn off the CNC Spark Eroder and clean the machine, removing any debris or residue. Follow the manufacturer's maintenance guidelines to ensure the machine remains in good working condition.

            Remember that using a CNC Spark Eroder requires precision and attention to detail. Always follow safety precautions, understand the machine's capabilities, and refer to the manufacturer's documentation for specific instructions and recommendations.
