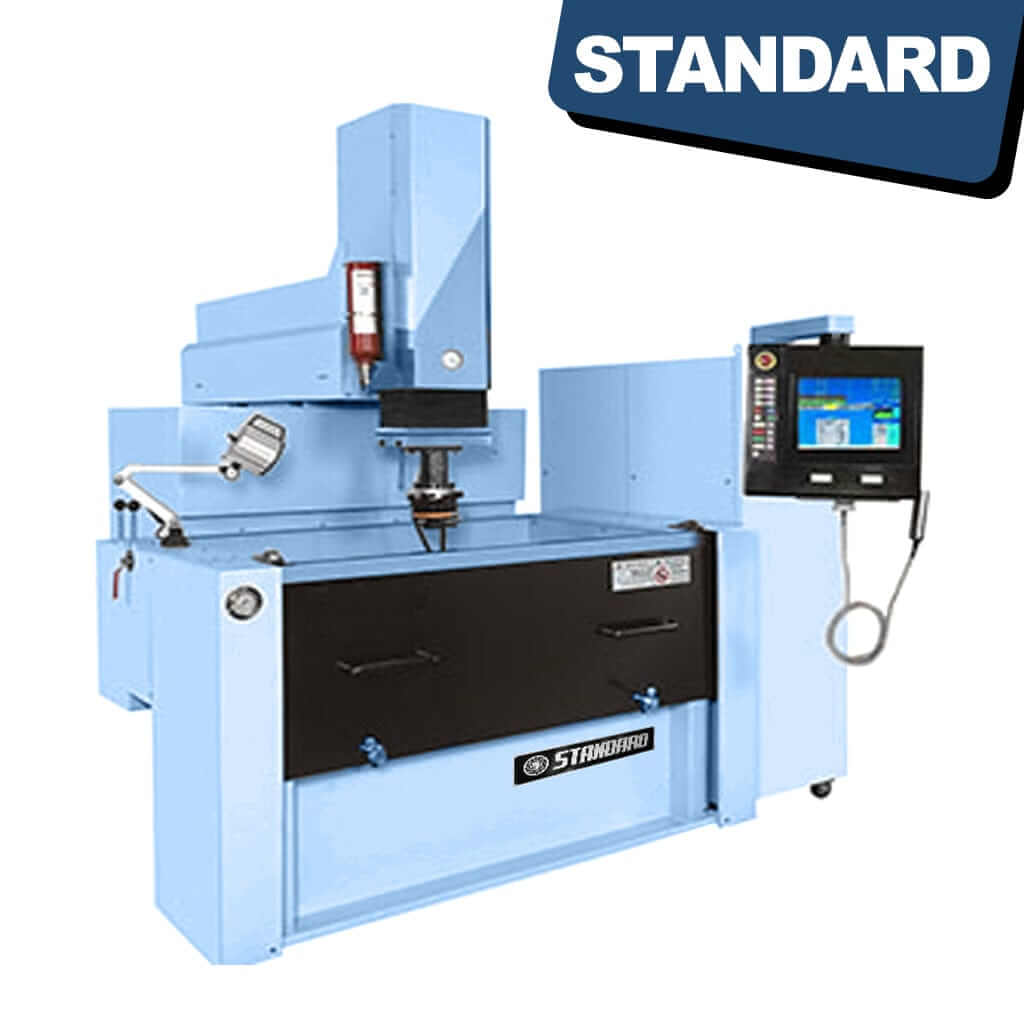

STANDARD EDM-500x400 Mirror finish CNC Spark Eroder

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

Introducing the STANDARD EDM-500x400 Mirror Finish CNC Spark Eroder – Your Precision Machining Solution.

Unlock the power of precision with our STANDARD EDM-500x400 Mirror Finish CNC Spark Eroder. Designed to meet the demands of modern manufacturing, this advanced machining marvel redefines accuracy and efficiency in the industry.

Key Features:

  1. Unrivaled Precision: Our CNC Spark Eroder boasts an exceptional level of precision, ensuring the finest mirror-like finishes on your workpieces. Experience unparalleled accuracy in every cut.

  2. Mirror Finish Capability: Achieve flawless mirror finishes on a wide range of materials, from hardened steel to exotic alloys. Elevate your products to new levels of quality and aesthetics.

  3. Robust Construction: Crafted with durability in mind, this machine is built to withstand the rigors of daily industrial use. Its robust construction guarantees longevity, reducing downtime and maintenance costs.

  4. Efficient CNC Control: Equipped with state-of-the-art CNC technology, our Spark Eroder offers intuitive and precise control over the machining process. Easily program complex geometries and achieve consistent results with ease.

  5. Enhanced Productivity: Experience a significant boost in productivity with rapid machining speeds and minimal electrode wear. Maximize your output while minimizing operational costs.

  6. User-Friendly Interface: The user-friendly interface simplifies operation, reducing the learning curve for operators. Get up and running quickly to optimize your workflow.

  7. Versatile Applications: Ideal for a wide range of applications, from tool and die production to intricate mold-making. Adapt to the evolving needs of your business effortlessly.

  8. Energy Efficiency: Designed with energy efficiency in mind, our Spark Eroder minimizes power consumption, contributing to a greener and more sustainable work environment.

Upgrade your machining capabilities and set new industry standards with the STANDARD EDM-500x400 Mirror Finish CNC Spark Eroder. Perfect for manufacturers seeking precision, speed, and quality in every project.

Experience the future of machining today. Invest in the best. Invest in excellence. Invest in the STANDARD EDM-500x400 Mirror Finish CNC Spark Eroder.

Optimize your production process with our EDM Spark Eroder now!.

    Specifications - Metric Measurements
    • Worktable size - 850x450mm
    • X-Y stroke - 500x400mm
    • Z axis stroke - 300mm
    • Distance from electrode head to worktable - 400-700um
    • Working tank inner size - 1450x800x500mm
    • Maximum Electrode Weight - 120kg
    • Workable loading - 1800kg
    • Machine Weight - 3300kg
    Specifications - Imperial Measurements
    • Worktable size - 33.46x17.72 inches
    • X-Y stroke - 19.69x15.75 inches
    • Z axis stroke - 11.81 inches
    • Distance from electrode head to worktable - 0.016-0.028 inches
    • Working tank inner size - 57.09x31.50x19.69 inches
    • Maximum Electrode Weight - 264.55 lbs
    • Workable loading -3968.32 lbs
    • Machine Weight - 7275.74 lbs
    Control Specifications
    • Processing Current - 30/50/75A
    • Positioning accuracy - 0.005mm
    • Repositioning accuracy - 0.003mm
    • Maximum working speed - 360/550mm3/min
    • Maximum Roughness - Ra:0.15um
    • Maximum Electrode consumption - <0.2%
    • Controller Overall Size - 750x650x1750mm
    • Controller Weight - 250kg
    Delivery
    Machines are strictly built on order. (Build-on-Demand).
    Delivery is 9-14 Weeks from Deposit.

    How to use a CNC Spark Eroder

    Using a mirror finish CNC Spark Eroder, also known as an EDM (Electrical Discharge Machining) machine, requires precision, attention to detail, and knowledge of the equipment. EDM is a process that utilizes electrical discharges to remove material from a workpiece, resulting in a high-quality mirror-like finish. Here's a step-by-step guide on how to use a mirror finish CNC Spark Eroder:

    1. Safety Precautions: Before you start, ensure you are wearing appropriate personal protective equipment, including safety glasses, gloves, and any other required gear. Make sure the machine is properly grounded to prevent electrical hazards.

    2. Machine Setup: Turn on the CNC Spark Eroder and wait for it to initialize. Secure the workpiece in the machine's workholding system, such as a vise or fixture, ensuring it's properly aligned and clamped securely.

    3. Tool Selection: Choose the appropriate electrode material for your workpiece. Common materials include copper, graphite, or tungsten. Install the electrode in the machine's tool holder, ensuring it's securely fastened.

    4. Programming: Create or load a CNC program that defines the toolpath for the EDM process. This program should specify the desired geometry and finish for your workpiece. Ensure that the program includes parameters such as spark gap, pulse duration, and flushing settings.

    5. Material Removal: Start the EDM process by running the CNC program. The machine will use electrical discharges (sparks) to remove material from the workpiece. These sparks occur between the electrode and the workpiece. The spark erosion process will continue until the desired shape and finish are achieved. Monitor the machine during this phase for any issues.

    6. Flushing System: EDM machines often employ a dielectric fluid (usually deionized water) to flush away the eroded material and maintain a stable spark gap. Ensure the dielectric fluid is circulating properly and that the work area remains clean throughout the process.

    7. Quality Inspection: Periodically stop the machine to inspect the workpiece's finish. Use measurement tools such as micrometers or profilometers to check surface quality and dimensions.

    8. Finishing Touches: If necessary, you can perform additional processes like polishing or deburring to further improve the surface finish of the workpiece.

    9. Post-Processing: After completing the machining operation, turn off the CNC Spark Eroder and carefully remove the finished workpiece from the machine.

    10. Cleanup: Clean the machine thoroughly, removing any residual debris and ensuring all components are in good condition for future use.

    Remember that using a mirror finish CNC Spark Eroder requires training and experience to achieve the desired results. It's essential to follow safety guidelines, maintain the machine properly, and troubleshoot any issues that may arise during the machining process. Additionally, always refer to the machine's user manual and consult with experienced operators when in doubt.
