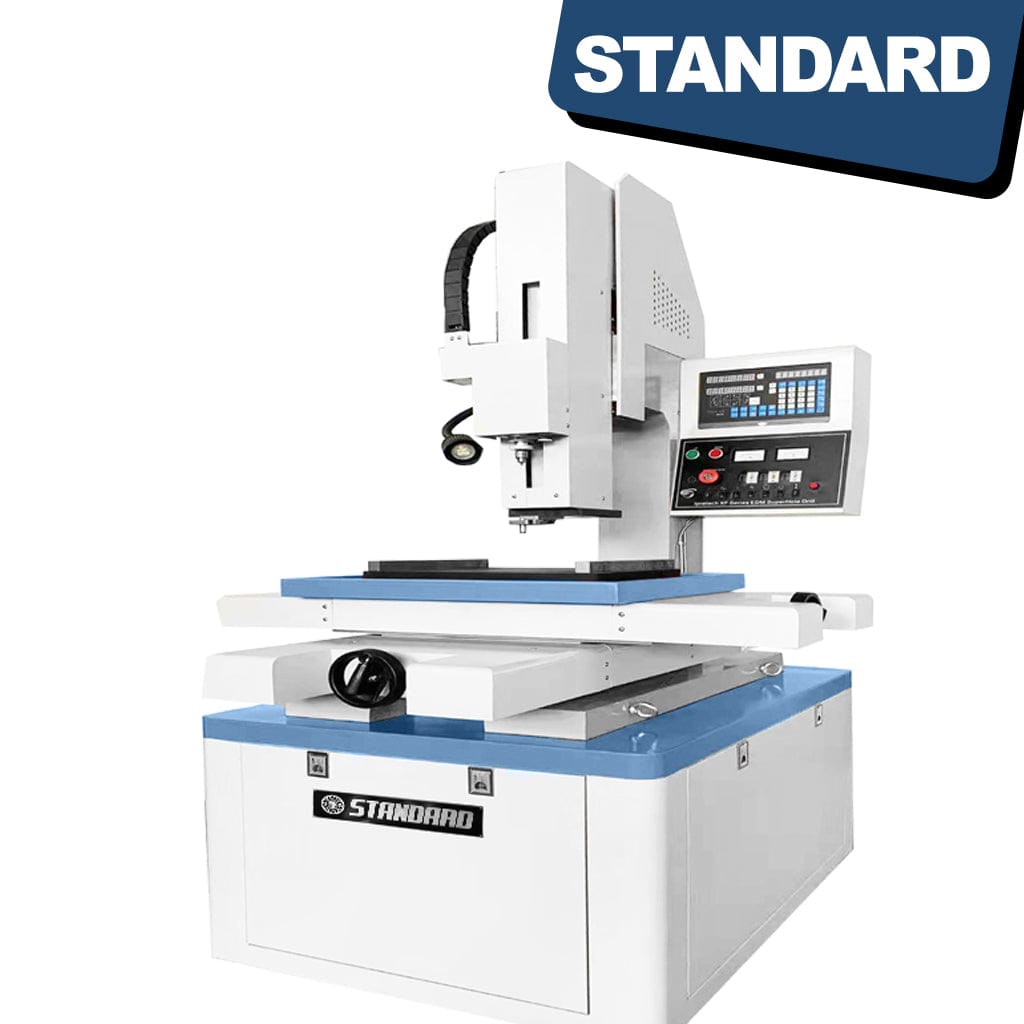

STANDARD EDD-400x300 EDM Drilling Machine (Ø0.3~3mm)

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

Introducing the STANDARD EDD-400x300 EDM Drilling Machine (Ø0.3~3mm) - Your Precision Partner in Drilling.

When precision and reliability are paramount in your drilling operations, look no further than the STANDARD EDD-400x300 EDM Drilling Machine. Designed to meet the demands of modern machining, this exceptional drilling machine combines cutting-edge technology with time-tested craftsmanship, making it an indispensable asset for your workshop.

Key Qualities and Attributes:

  1. Exceptional Precision: The STANDARD EDD-400x300 boasts an impressive drilling diameter range of Ø0.3~3mm, allowing you to achieve pinpoint accuracy even in the most intricate drilling tasks.

  2. Efficiency Redefined: With its advanced EDM (Electrical Discharge Machining) technology, this machine excels in removing material swiftly and efficiently, ensuring minimal material waste and reducing production time.

  3. Unwavering Reliability: Crafted with the highest quality materials and components, the EDD-400x300 is built to last. Its robust construction guarantees years of trouble-free operation, minimizing downtime and maintenance costs.

  4. User-Friendly Interface: Operating this machine is a breeze thanks to its intuitive interface. Whether you're a seasoned professional or a novice, you'll find the EDD-400x300 easy to set up and use.

  5. Versatile Applications: This drilling machine is adaptable to a wide range of materials, including metals, ceramics, and composites. It's the ideal choice for industries such as aerospace, automotive, and precision engineering.

  6. Safety First: Safety is paramount, and the STANDARD EDD-400x300 comes equipped with comprehensive safety features to protect both the machine and its operators.

  7. Space-Saving Design: With a compact footprint, this drilling machine fits seamlessly into any workshop layout, maximizing your workspace efficiency.

Invest in the STANDARD EDD-400x300 EDM Drilling Machine and experience the perfect synergy of precision, efficiency, and reliability. Elevate your drilling operations to new heights and meet the demands of today's competitive market with confidence.

Enhance your workshop's capabilities with the STANDARD EDD-400x300 EDM Drilling Machine – the ultimate choice for those who demand nothing but the best. Purchase yours today and take the first step towards drilling excellence.

Main Features:

  • This EDM drilling machine comes standard with a Taiwan-style drill head and linear guide rail.
  • At the end of drilling, the spindle head automatically returns to its starting position post-settings of drilling depth.
  • Featuring a robust steel structure/iron casting machine bed for increased durability.
  • Processing speed reaches a maximum of 70 mm²/min.
Specifications
  • Worktable size - 320x460mm
  • X-Y stroke - 300x400mm
  • Control Type - ZNC Controller
  • Principal Axis travel - 300+360mm
  • Water Flushing Pump - Electrical pump
  • Table loading - 350kg
  • Electrode diameter - 0.2-3.0mm(300:1) 0.3-6.0mm
  • Power supply - 1 phase 220V; 3 phase 380V; 50/60 Hz
  • Working Fluid - Clean Water and Purified water
  • Machine Average Current - 50A
  • Maximum Cutting Speed - 50-70mm/min
  • Maximum Processing Power - 3.3W
  • Water Pump Pressure - 8Mpa
  • Central Lubrication - Yes
  • Machine weight - 600kg
  • Overall size - 1250x980x1750mm
Delivery
Machines are strictly built on order. (Build-on-Demand).
Delivery is 9-14 Weeks from Deposit.
How to use a EDM Drilling Machine

Using an EDM (Electrical Discharge Machining) drilling machine with a drilling diameter range of 0.3mm to 3mm requires careful setup and operation. EDM drilling is a precision machining process that uses electrical discharges to erode material from a workpiece. Here's a step-by-step guide on how to use an EDM drilling machine effectively:

1. Safety Precautions: Before you begin, ensure you are wearing appropriate personal protective equipment, including safety glasses, gloves, and protective clothing. Make sure the EDM machine is in good working condition and that all safety features are functional.

2. Setup: Choose the appropriate electrode for your desired hole size (0.3mm to 3mm). The electrode should have a diameter that matches your drilling requirements. Mount the electrode securely in the machine's electrode holder. Securely clamp the workpiece to the machine's worktable using clamps or a vise. Ensure that it is positioned accurately and securely.

3. Dielectric Fluid: Fill the machine's dielectric reservoir with the recommended dielectric fluid. The dielectric fluid serves as a medium for the electrical discharge and helps flush away debris. Ensure the fluid level is adequate and that the machine's pumps and filters are functioning correctly.

4. Machine Settings: Power up the EDM drilling machine and access the control panel. Set the appropriate machining parameters, such as current, pulse duration, and voltage, based on the material of the workpiece and the hole diameter. Consult the machine's user manual or a machining expert for guidance on the specific settings.

5. Workpiece Alignment: Use the machine's axis controls to position the electrode precisely over the desired drilling location on the workpiece. Take care to align the electrode perpendicular to the workpiece surface to ensure an accurate hole.

6. Start Drilling: Initiate the EDM drilling process. The machine will begin discharging electrical sparks between the electrode and the workpiece. The electrical discharge will gradually erode material, creating a hole. The dielectric fluid helps carry away debris and cools the workpiece during the process.

7. Monitor and Control: Continuously monitor the EDM drilling process to ensure it progresses as desired. Adjust the machine settings if necessary to achieve the desired hole diameter, depth, and surface finish.

8. Completion: Once the hole is drilled to the required specifications, stop the EDM machine. Carefully remove the workpiece from the machine's worktable, taking care not to damage the newly drilled hole.

9. Post-Process: After drilling, the workpiece may require cleaning to remove any residual dielectric fluid or debris. Inspect the drilled hole for accuracy and quality.

10. Maintenance: Regularly maintain the EDM drilling machine by cleaning and inspecting electrodes, dielectric fluid, and filters. Follow the manufacturer's maintenance guidelines for optimal performance and longevity.

Always refer to the specific user manual and safety guidelines provided by the manufacturer of your EDM drilling machine for detailed instructions and safety precautions, as different machines may have variations in operation. Additionally, consider seeking training or guidance from experienced machinists if you are new to EDM drilling.
