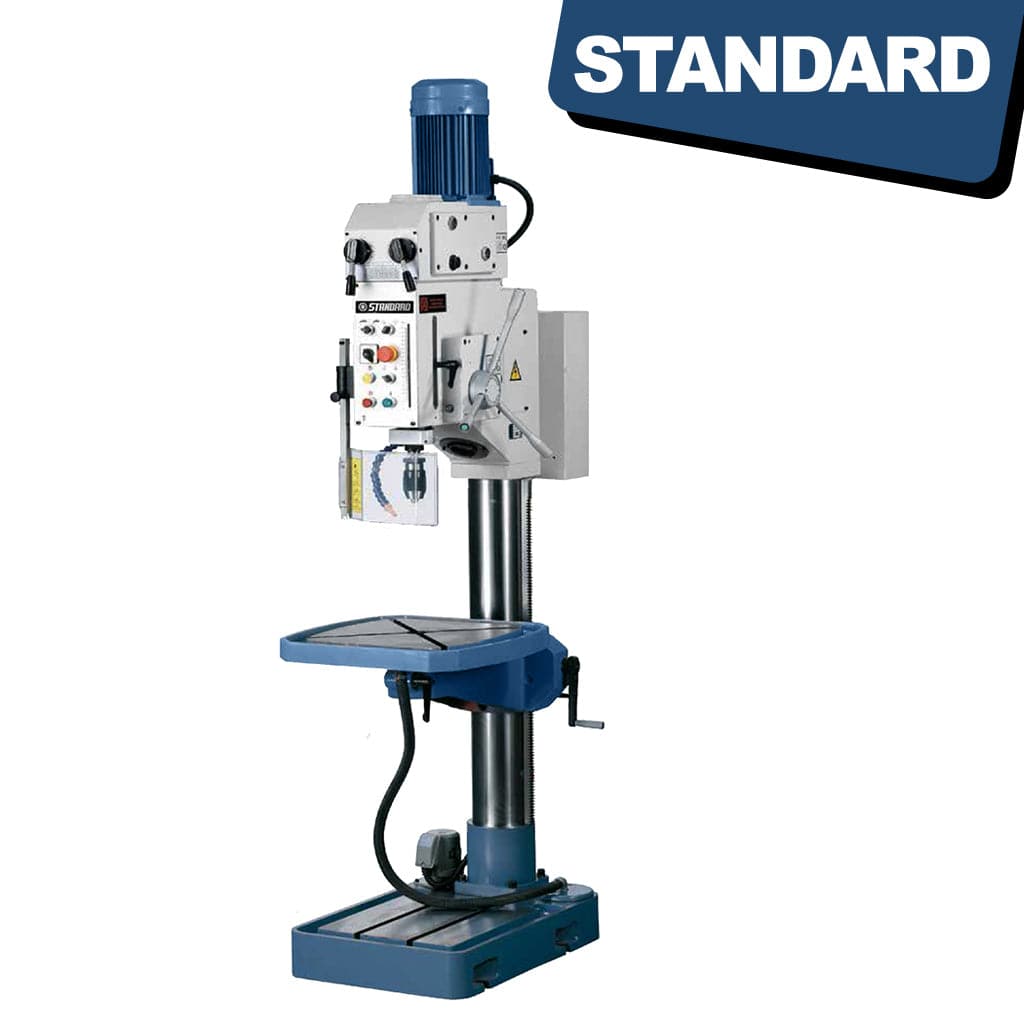

STANDARD DG-40 Gearbox Head Pedestal Drilling Machine

*Excludes Local Taxes*

*Products are built on order, general delivery is 8~16weeks and include Sea Freight to most ports

Description

Our Gearbox Head Pedestal Drilling Machine is a versatile industrial tool designed for precision drilling in various materials. Its high-quality construction ensures stability and durability, enabling accurate drilling operations. The gearbox head offers multiple speed settings for different drilling requirements, enhancing performance and versatility. With adjustable table height and angle, it accommodates various workpieces and drilling angles. The machine's efficient power transmission and robust design contribute to consistent and reliable drilling results. Ideal for metalworking, woodworking, and other applications, it provides controlled and efficient drilling, making it a valuable asset for workshops and manufacturing facilities.

Main Features:

  • Capability for Drilling, Milling, and Tapping.
  • Head swivels 360 degrees horizontally.
  • Headstock and Worktable can be adjusted up and down perpendicularly.
  • Super high column (referring to a tall column).
  • Precision micro feed for accurate and precise operations.
  • Positive spindle lock for secure tool retention.
  • Distinct automatic device for releasing tools that is easy to operate.
  • Geared drive for reduced noise during operation.
    Specifications
    • Maximum drilling diameter - 40mm = 1.57 in
    • Spindle Taper - MT4
    • Spindle center to column surface distance -350mm = 13.78 in
    • Maximum stroke of the spindle - 180mm = 7.09 in
    • Spindle speed range - 50-1450mm
    • Maximum distance from the end face of the spindle to the working face of the base - 1320mm = 51.97 in
    • Maximum distance from the end face of the spindle to the table - 780mm = 30.71 in
    • Workbench size - 560×385mm = 22.05 x 15.16 in
    • Base size - 730×500mm = 28.74 x 19.69 in
    • T-slot width - 18mm = 0.71 in
    • Base T-slot distance - 150mm = 5.91 in
    • Feed range - 0.1mm/rev = 0.0039 inches per revolution (ipr)
    • Main motor power - 0.85kW = 1.14hp
    • Cooling pump power - 60W
    • Machine Dimensions (LxWxH) - 730×560×2220mm = 28.74 x 22.05 x 87.4 in
    • Shipping Dimensions (LxWxH) - 1130x700x2280mm = 44.49 x 27.56 x 89.76 in
    • Gross weight / net weight - 545/465kg =  1201.72/1025.8 lbs
    Standard Accessories
    • Working lamp
    • Cooling system
    • Defensive equipment
    • Drill chuck and post
        Delivery

        Product is Build on Order Only.

        Delivery is 8-12 Weeks from Deposit


        How to use a Gearbox Head Pedestal Drilling Machine

        Here is a step-by-step guide on how to use a gearbox head pedestal drilling machine:

        1. Set up the machine: Make sure the machine is securely fastened to the floor or work surface. Check that the electric supply is connected and switched on. Make sure the drill bit is properly installed in the chuck.

        2. Adjust the speed: The gearbox head pedestal drilling machine usually has multiple speed settings. Choose the appropriate speed for the material you are drilling and the size of the drill bit.

        3. Adjust the depth of the hole: The machine typically has a feed mechanism that allows you to adjust the depth of the hole. Set the desired depth by turning the depth stop or adjusting the feed mechanism.

        4. Clamp the workpiece: Clamp the workpiece to the table or work surface to prevent it from moving while drilling.

        5. Start drilling: Turn on the machine and apply gentle pressure to the drill bit. Start drilling at a slow speed and gradually increase the speed as the drill bit penetrates the material. Keep the drill bit perpendicular to the workpiece and do not apply too much pressure, as this can cause the drill bit to break or the workpiece to crack.

        6. Stop the machine: Once you have reached the desired depth, turn off the machine and allow it to come to a complete stop. Remove the drill bit from the chuck and release the clamp on the workpiece.

        7. Maintenance: After using the gearbox head pedestal drilling machine, it is important to clean the machine and keep it well lubricated. Store the machine in a dry, clean place to prevent rust and corrosion.

        Safety precautions: Always wear protective equipment, such as safety glasses and earplugs, when using a gearbox head pedestal drilling machine. Avoid loose clothing and tie back long hair. Keep your hands and other body parts away from the drill bit at all times. If you are unsure about how to use the machine, seek the advice of an experienced operator or read the manual carefully.

        Description

        Our Gearbox Head Pedestal Drilling Machine is a versatile industrial tool designed for precision drilling in various materials. Its high-quality construction ensures stability and durability, enabling accurate drilling operations. The gearbox head offers multiple speed settings for different drilling requirements, enhancing performance and versatility. With adjustable table height and angle, it accommodates various workpieces and drilling angles. The machine's efficient power transmission and robust design contribute to consistent and reliable drilling results. Ideal for metalworking, woodworking, and other applications, it provides controlled and efficient drilling, making it a valuable asset for workshops and manufacturing facilities.

        Main Features:

        • Capability for Drilling, Milling, and Tapping.
        • Head swivels 360 degrees horizontally.
        • Headstock and Worktable can be adjusted up and down perpendicularly.
        • Super high column (referring to a tall column).
        • Precision micro feed for accurate and precise operations.
        • Positive spindle lock for secure tool retention.
        • Distinct automatic device for releasing tools that is easy to operate.
        • Geared drive for reduced noise during operation.
          Specifications
          • Maximum drilling diameter - 40mm = 1.57 in
          • Spindle Taper - MT4
          • Spindle center to column surface distance -350mm = 13.78 in
          • Maximum stroke of the spindle - 180mm = 7.09 in
          • Spindle speed range - 50-1450mm
          • Maximum distance from the end face of the spindle to the working face of the base - 1320mm = 51.97 in
          • Maximum distance from the end face of the spindle to the table - 780mm = 30.71 in
          • Workbench size - 560×385mm = 22.05 x 15.16 in
          • Base size - 730×500mm = 28.74 x 19.69 in
          • T-slot width - 18mm = 0.71 in
          • Base T-slot distance - 150mm = 5.91 in
          • Feed range - 0.1mm/rev = 0.0039 inches per revolution (ipr)
          • Main motor power - 0.85kW = 1.14hp
          • Cooling pump power - 60W
          • Machine Dimensions (LxWxH) - 730×560×2220mm = 28.74 x 22.05 x 87.4 in
          • Shipping Dimensions (LxWxH) - 1130x700x2280mm = 44.49 x 27.56 x 89.76 in
          • Gross weight / net weight - 545/465kg =  1201.72/1025.8 lbs
          Standard Accessories
          • Working lamp
          • Cooling system
          • Defensive equipment
          • Drill chuck and post
              Delivery

              Product is Build on Order Only.

              Delivery is 8-12 Weeks from Deposit

              How to use a Gearbox Head Pedestal Drilling Machine

              Here is a step-by-step guide on how to use a gearbox head pedestal drilling machine:

              1. Set up the machine: Make sure the machine is securely fastened to the floor or work surface. Check that the electric supply is connected and switched on. Make sure the drill bit is properly installed in the chuck.

              2. Adjust the speed: The gearbox head pedestal drilling machine usually has multiple speed settings. Choose the appropriate speed for the material you are drilling and the size of the drill bit.

              3. Adjust the depth of the hole: The machine typically has a feed mechanism that allows you to adjust the depth of the hole. Set the desired depth by turning the depth stop or adjusting the feed mechanism.

              4. Clamp the workpiece: Clamp the workpiece to the table or work surface to prevent it from moving while drilling.

              5. Start drilling: Turn on the machine and apply gentle pressure to the drill bit. Start drilling at a slow speed and gradually increase the speed as the drill bit penetrates the material. Keep the drill bit perpendicular to the workpiece and do not apply too much pressure, as this can cause the drill bit to break or the workpiece to crack.

              6. Stop the machine: Once you have reached the desired depth, turn off the machine and allow it to come to a complete stop. Remove the drill bit from the chuck and release the clamp on the workpiece.

              7. Maintenance: After using the gearbox head pedestal drilling machine, it is important to clean the machine and keep it well lubricated. Store the machine in a dry, clean place to prevent rust and corrosion.

              Safety precautions: Always wear protective equipment, such as safety glasses and earplugs, when using a gearbox head pedestal drilling machine. Avoid loose clothing and tie back long hair. Keep your hands and other body parts away from the drill bit at all times. If you are unsure about how to use the machine, seek the advice of an experienced operator or read the manual carefully.
