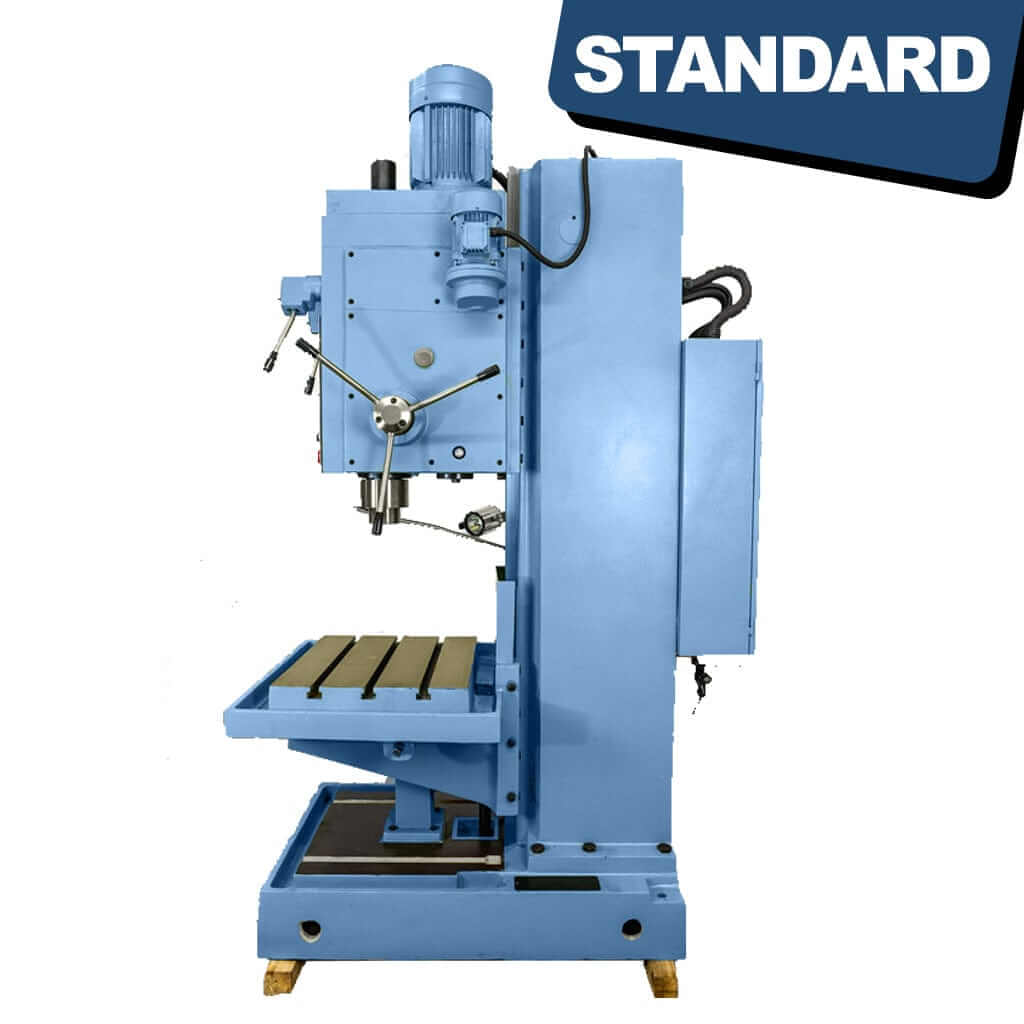

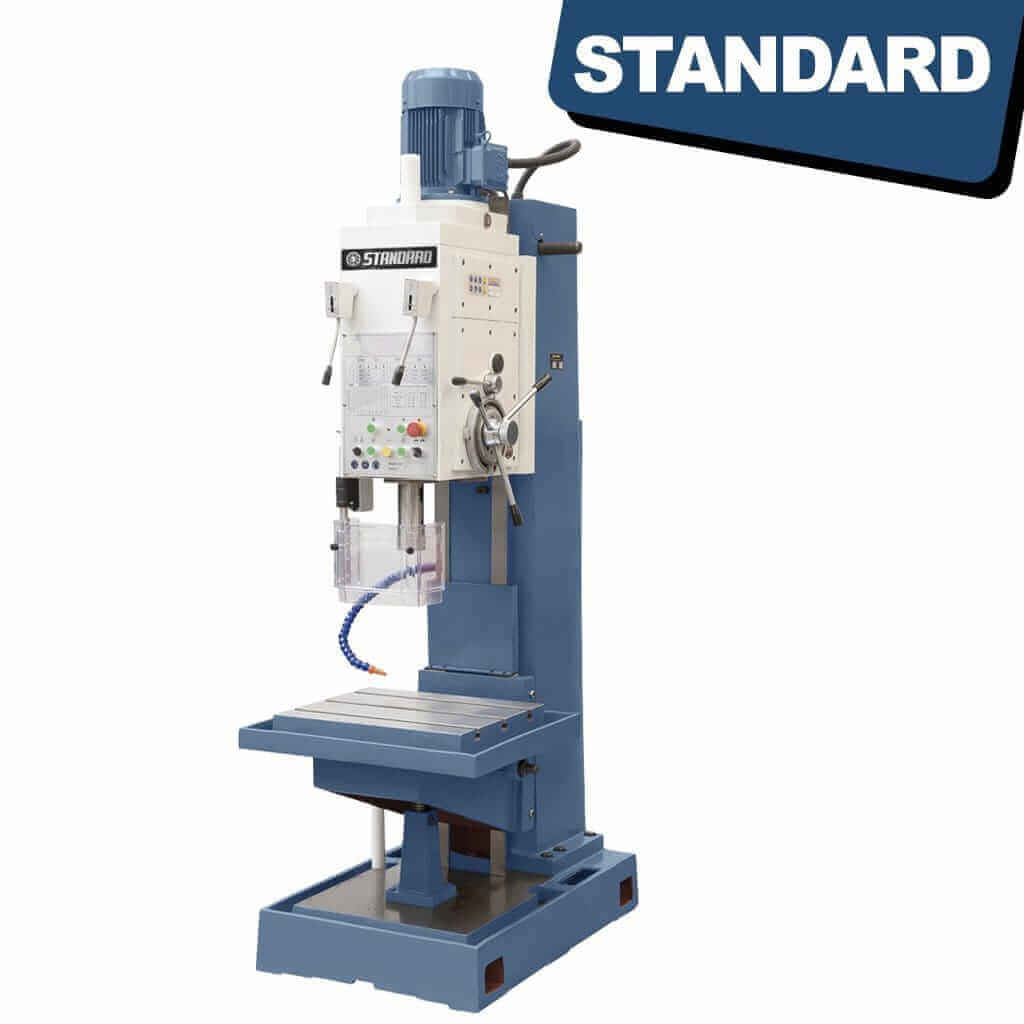

STANDARD DC-63 Heavy Duty Column Type Drilling Pedestal Machine

*Excludes Local Taxes*

*Products are built on order, general delivery is 8~16weeks and include Sea Freight to most ports

Description

This vertical drilling machine is an industrial tool designed for precision drilling in heavy and large workpieces. Its high-quality construction ensures stability and durability, enabling accurate and efficient drilling operations. The robust column design provides excellent support and rigidity during drilling, minimizing vibrations for precise results. With adjustable spindle speeds and feed rates, it offers versatility for various drilling tasks and materials. The machine's powerful motor and enhanced power transmission system contribute to high-performance drilling even in demanding applications. Ideal for industrial settings, it delivers reliable and consistent drilling performance, making it a valuable asset for machining operations and fabrication processes.

Main Features:

  • Box type DC-63 Vertical Drilling Machine series offer the ability to perform drilling, boring, reaming, countersinking, and tapping operations.
  • Boasting high precision, exemplary rigidity, and hearty torque, this machine has a low noise output and a wide array of adjustable speeds.
  • This machine features an automatic tapping reverse structure, allowing for the principle axis to reverse counterclockwise automatically and making tapping into head and deep holes more accessible.
Specifications
  • Max. drilling diameter - Ø63mm = 2.48 inches
  • Max Feed resistance - 30000N = 6744 pounds-force
  • Max. spindle allowable torque - 800N.m = 590.05 foot-pounds
  • Main motor power - 5.5kW = 7.38 horsepower
  • Throat Depth - 375mm = 14.76 inches
  • Spindle taper - MT5
  • Spindle stroke - 250mm = 9.84 inches
  • Headstock travel (manual) - 250mm = 9.84 inches
  • Spindle speed range (level) - 40-570r/min (9 levels)
  • The amount of feed (level) - 0.1-0.78 r/min (6 levels)
  • The largest table travel - 300mm = 11.81 inches
  • Table working Area - 650x550mm = 25.59 x 21.65 inches
  • Spindle face to the work of table maximum distance - 800mm = 31.5 inches
  • Machine dimension - 965x1452x2787mm = 38.0 x 57.17 x 109.72 inches
  • Packing Size - 2850x1110x1940mm = 112.20 x 43.70 x 76.38 inches
  • Machine Weight NW/ GW – 1850/1935kg = 4078.85/4265.96 pounds
      Delivery

      Delivery is 8-12 Weeks from Deposit

      How to use a Heavy Duty Column Type Drilling Pedestal Machine

      To use a heavy-duty column type drilling pedestal machine, follow these steps:

      1. Set up the machine: Start by mounting the machine on a level and stable surface, and make sure the power supply is properly connected. Adjust the height of the table to match the workpiece, and use clamps to secure the workpiece to the table if necessary.

      2. Choose the correct drill bit: Select the correct drill bit for the material you are drilling and make sure it is properly secured in the drill chuck.

      3. Adjust the speed: Adjust the speed of the spindle to match the material and size of the drill bit. A slower speed is typically recommended for larger and harder materials, while a higher speed is better for smaller and softer materials.

      4. Adjust the depth of the hole: Use the adjustable stop collar on the spindle to set the desired depth of the hole. Make sure to set the stop collar before starting the machine, as it is difficult to adjust while the machine is running.

      5. Start drilling: Turn on the machine and carefully align the drill bit with the marked center of the workpiece. Apply gentle pressure to start the drilling process, and continue until the stop collar reaches the desired depth.

      6. Turn off the machine: Once the drilling is complete, turn off the machine and carefully remove the workpiece from the table. Inspect the hole to make sure it meets your specifications, and make any necessary adjustments to the machine before starting the next operation.

      It is important to always wear proper safety gear when using a heavy-duty column type drilling pedestal machine, including safety glasses, gloves, and hearing protection. Also, be sure to follow the manufacturer's instructions and guidelines for safe and effective use of the machine.
