STANDARD BM-460NC Semi-Auto Miter Cutting Bandsaw (Dual Angle), available from STANDARD and Standard Direct.

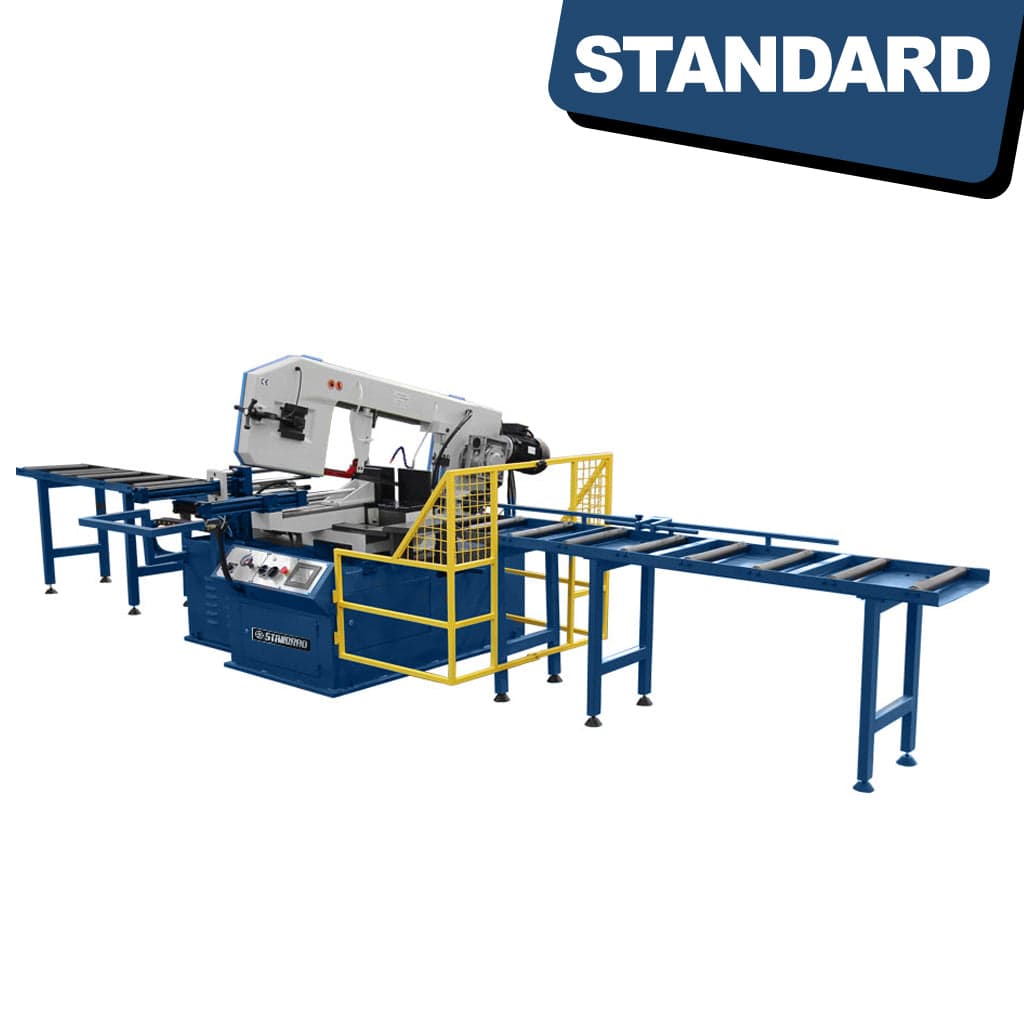

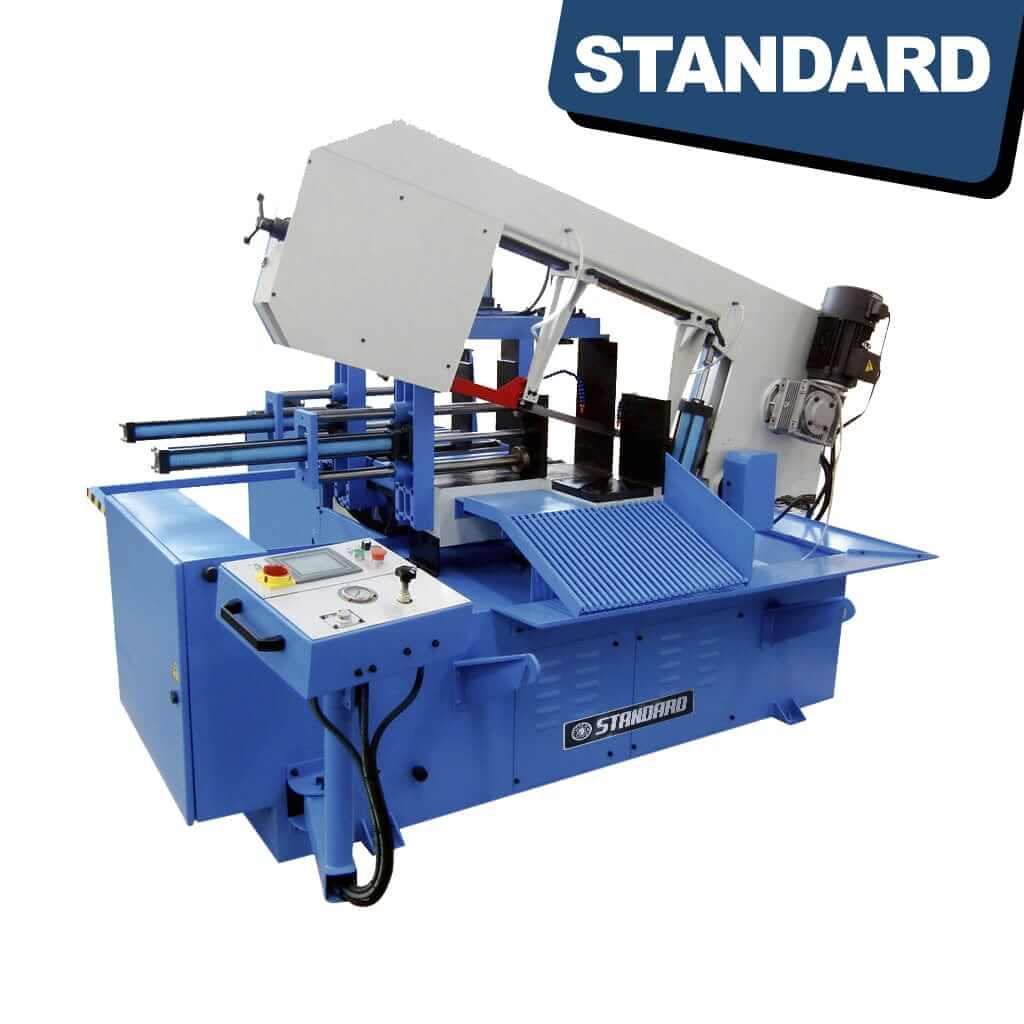

STANDARD BM-460NC Automatic Miter Cutting Bandsaw (Dual Angle)

STANDARD BM-460NC Automatic Miter Cutting Bandsaw (Dual Angle)

$30,385.46

*Excludes Local Taxes*

*Products are built on order, general delivery is 8~16weeks and include Sea Freight to most ports

Description

Standard BM-460NC Automatic Miter Cutting Bandsaw (Dual Angle):

A Full-Automatic dual-angle miter cutting bandsaw is a power tool designed to make precise and accurate cuts in metal materials. It features a saw blade that rotates on two axes, allowing for both angled and mitered cuts. The saw blade is automatically fed into the material, and the cutting angle can be adjusted and set to cut at specific angles and depths. The machine is controlled by a computer, which allows for precise and consistent cuts, and can be programmed for multiple cuts. This type of bandsaw is commonly used in industrial settings for metal fabrication and manufacturing processes.

Main Features:

  • Hinged cutting action with the bow set at 90° for precise cutting.
  • User-friendly touch screen controller for easy operation.
  • Equipped with a shuttle vice feeding system for efficient material handling.
  • Hydraulic vice and clamping system ensure secure workpiece positioning.
  • Variable blade speed controlled by a servo motor for versatile cutting options.
  • Automatic chip conveyor for convenient removal of waste material.
  • Blade breakage feature and low maintenance gearbox for enhanced durability.
  • Coolant system to maintain optimal cutting conditions.
Specifications
  • Capacity:
    • Circular at 90° - 460 mm = 18.1 inches
    • Rectangular at 90° - 650x350 mm = 25.6x13.8 inches
    • Circular at 60° (right) - 310 mm = 12.2 inches
    • Rectangular at 60° (right) - 310x350 mm = 12.2x13.8 inches
    • Circular at 45° (right) - 460 mm = 18.1 inches
    • Rectangular at 45° (right) - 460x350 mm = 18.1x13.8 inches
  • Blade Speed - 23-95 rpm = 23-95 feet per minute
  • Blade Size - 41x1.3x5220 mm = 41x0.051x206 inches
  • Motor - 5.5 kW Servo motor = 7.4hP
  • Drive - Gear
  • Dimensions - 2920x2180x2170mm = 15x86x85.4 inches
  • Gross Weight - 2300kg = 5070lbs
Standard Features
  • CNC automatic feeding and cutting.
  • Hydraulic clamping vice.
  • Automatic rotary saw bow.
  • Deceleration variable frequency motor.
  • Maximum length of an automatic feed us to 650mm.
  • Maximum processing capability is 45mm.
  • The precise CNC band saw has a hydraulic control system that can automatically feed and clap materials, rotate and cut.
  • This band saw has a variable gear motor that determines the rotation rate of the saw blade.
  • Hydraulic pressure controls the rotation of saw bow.
  • The maximum feeding length is 650mm
  • The cooling system prolongs the service life of saw blade and improves the precision of the workpiece.
Standard Accessories
  • Blade
  • Hydraulic clamping vice
  • PLC touch screen
  • Automatic feeding
  • CE standard switch protect operator safe



Delivery

Delivery is 8-12 Weeks from Deposit


How to use a Full-Automatic cutting bandsaw

Using a Full-Automatic dual-angle miter cutting bandsaw typically involves the following steps:

  1. Set up the material to be cut securely on the saw bed and adjust the clamping mechanism to hold it firmly in place.
  2. Enter the cutting specifications, such as the angle and depth, into the computer control panel.
  3. Start the saw and allow it to reach the desired speed.
  4. Engage the blade and begin the cut, ensuring that the blade is moving at a consistent speed.
  5. Monitor the cutting process to ensure that the blade is cutting smoothly and making the correct angle and depth of cut.
  6. When the cut is complete, turn off the saw and remove the cut material from the bed.
  7. Repeat the process for additional cuts, if necessary, adjusting the angle and depth settings as needed.

It's important to always follow the manufacturer's instructions and safety guidelines when using any power tool, including a Full-Automatic dual-angle miter cutting bandsaw, and to wear appropriate safety gear, such as eye protection and gloves.

Description

Standard BM-460NC Automatic Miter Cutting Bandsaw (Dual Angle):

A Full-Automatic dual-angle miter cutting bandsaw is a power tool designed to make precise and accurate cuts in metal materials. It features a saw blade that rotates on two axes, allowing for both angled and mitered cuts. The saw blade is automatically fed into the material, and the cutting angle can be adjusted and set to cut at specific angles and depths. The machine is controlled by a computer, which allows for precise and consistent cuts, and can be programmed for multiple cuts. This type of bandsaw is commonly used in industrial settings for metal fabrication and manufacturing processes.

Main Features:

  • Hinged cutting action with the bow set at 90° for precise cutting.
  • User-friendly touch screen controller for easy operation.
  • Equipped with a shuttle vice feeding system for efficient material handling.
  • Hydraulic vice and clamping system ensure secure workpiece positioning.
  • Variable blade speed controlled by a servo motor for versatile cutting options.
  • Automatic chip conveyor for convenient removal of waste material.
  • Blade breakage feature and low maintenance gearbox for enhanced durability.
  • Coolant system to maintain optimal cutting conditions.
Specifications
  • Capacity:
    • Circular at 90° - 460 mm = 18.1 inches
    • Rectangular at 90° - 650x350 mm = 25.6x13.8 inches
    • Circular at 60° (right) - 310 mm = 12.2 inches
    • Rectangular at 60° (right) - 310x350 mm = 12.2x13.8 inches
    • Circular at 45° (right) - 460 mm = 18.1 inches
    • Rectangular at 45° (right) - 460x350 mm = 18.1x13.8 inches
  • Blade Speed - 23-95 rpm = 23-95 feet per minute
  • Blade Size - 41x1.3x5220 mm = 41x0.051x206 inches
  • Motor - 5.5 kW Servo motor = 7.4hP
  • Drive - Gear
  • Dimensions - 2920x2180x2170mm = 15x86x85.4 inches
  • Gross Weight - 2300kg = 5070lbs
Standard Features
  • CNC automatic feeding and cutting.
  • Hydraulic clamping vice.
  • Automatic rotary saw bow.
  • Deceleration variable frequency motor.
  • Maximum length of an automatic feed us to 650mm.
  • Maximum processing capability is 45mm.
  • The precise CNC band saw has a hydraulic control system that can automatically feed and clap materials, rotate and cut.
  • This band saw has a variable gear motor that determines the rotation rate of the saw blade.
  • Hydraulic pressure controls the rotation of saw bow.
  • The maximum feeding length is 650mm
  • The cooling system prolongs the service life of saw blade and improves the precision of the workpiece.
Standard Accessories
  • Blade
  • Hydraulic clamping vice
  • PLC touch screen
  • Automatic feeding
  • CE standard switch protect operator safe



Delivery

Delivery is 8-12 Weeks from Deposit

How to use a Full-Automatic cutting bandsaw

Using a Full-Automatic dual-angle miter cutting bandsaw typically involves the following steps:

  1. Set up the material to be cut securely on the saw bed and adjust the clamping mechanism to hold it firmly in place.
  2. Enter the cutting specifications, such as the angle and depth, into the computer control panel.
  3. Start the saw and allow it to reach the desired speed.
  4. Engage the blade and begin the cut, ensuring that the blade is moving at a consistent speed.
  5. Monitor the cutting process to ensure that the blade is cutting smoothly and making the correct angle and depth of cut.
  6. When the cut is complete, turn off the saw and remove the cut material from the bed.
  7. Repeat the process for additional cuts, if necessary, adjusting the angle and depth settings as needed.

It's important to always follow the manufacturer's instructions and safety guidelines when using any power tool, including a Full-Automatic dual-angle miter cutting bandsaw, and to wear appropriate safety gear, such as eye protection and gloves.

*Information shown may differ or change without warning*
